CJ series
Precision Balance
Capacity：820g〜15kg／Readability：0.01g～1g
Heavy duty precision balance with stainless steel housing
Common Specification
| Tare | Zero to Full weighing range |
|---|---|
| Span adjustment | Manual operation Span Adjustment with external calibration weight |
| Ingress Protection Rating | IP65 |
| Over error | "o-Err" showed when Full weight range + 9 more digits over |
| Temperature and humidity range | 0 ～ 40℃、Up to 80％ rh(without the dew condensation) |
| Power source | AC adapter Input 100-240VAC / Output 5.95VDC |
| Output | RS232C(Dsub 9P) |
Download
Features

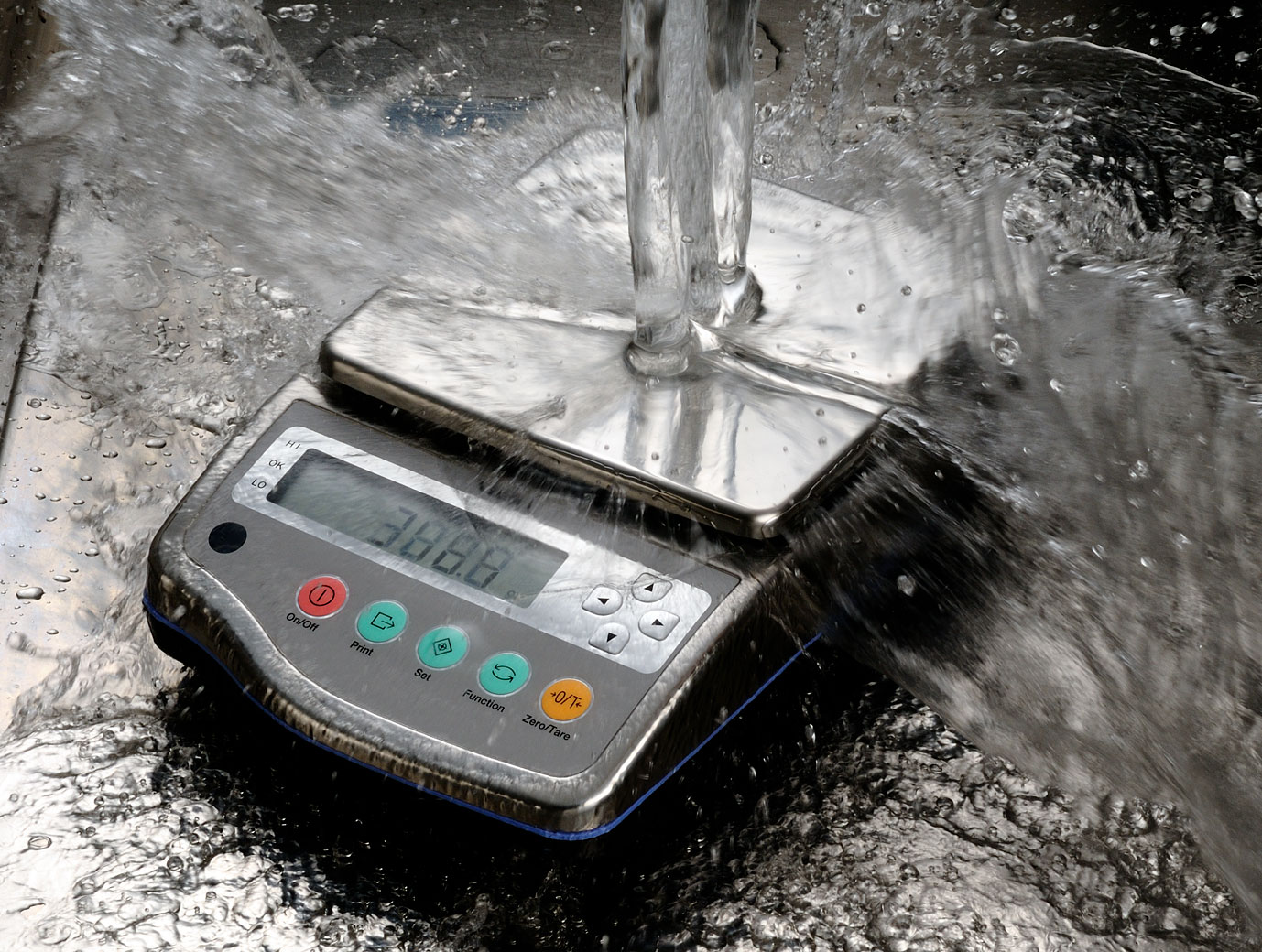

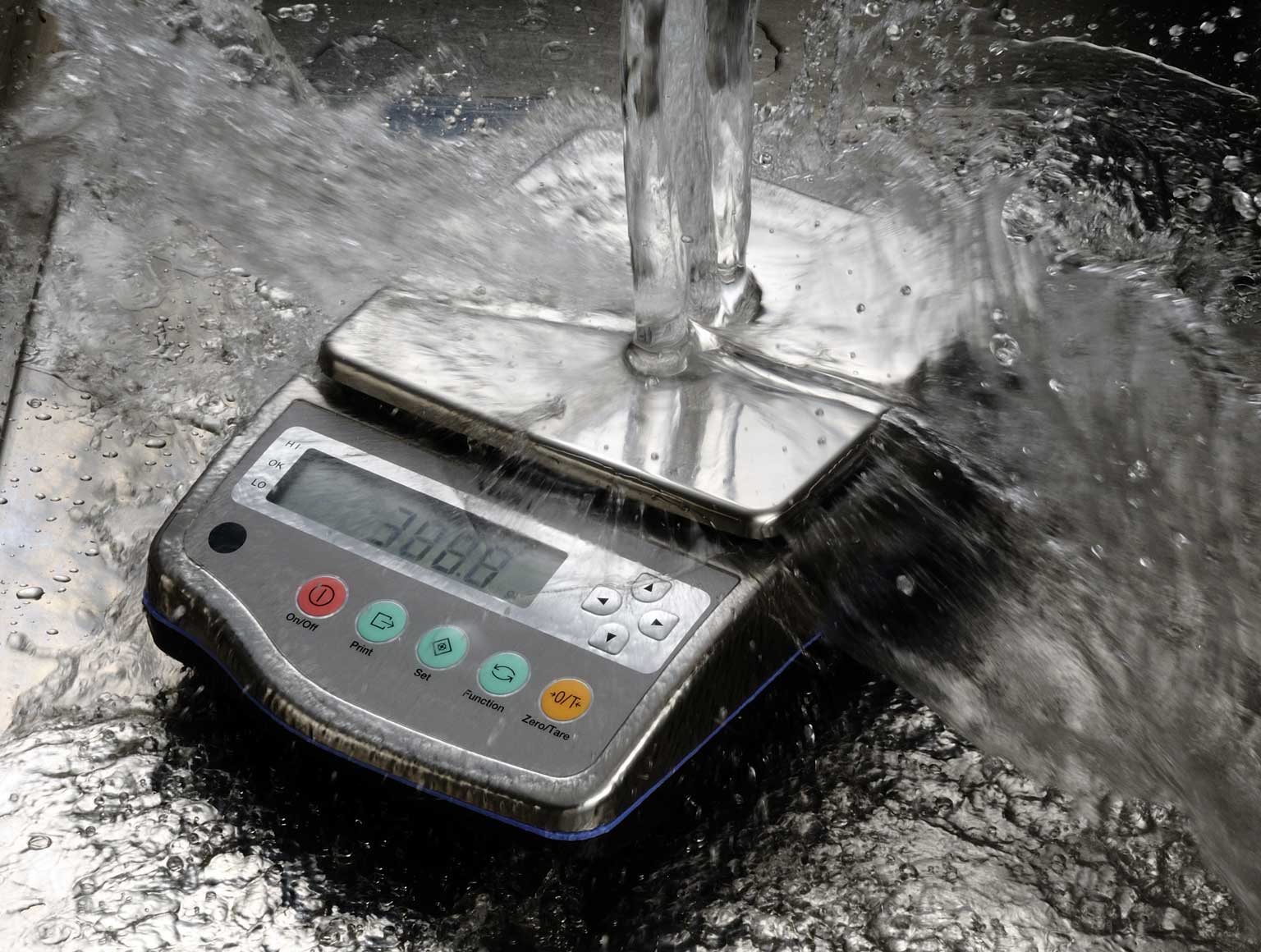

- IP65, water and dust proof
- Reliable measurement even in tough condition
Heavy duty precision balance with water and dust proof feature
CJ series promises the excellent performance in any environment, dust atmosphere, mist, oil splashes, dark condition... etc. The stainless-steel upper case is resistant to chemical products, and easy to clean. This is the best solution to your every needs.
Minimize the response time and keep the indication stable
Unique tuning-fork sensing system achieves the high speed response and stable indication necessary for reliable measurement. The fast response ensures the comfortable and efficient operation.
Low energy consuming, high portability
Low energy-consuming design allows CJ series to operate for 200 hours with dry-cell battery (when back-lit is OFF). It is very much suitable for mobile use (32-hour operation with dry-cell battery in case of back-lit ON)
Various measurement modes & functions for industrial weighing
Parts counting, percentage, comparator, density measurement... CJ is the answer to various requirements in the industrial weighing. You can easily set the appropriate mode with arrow key.
Animal weighing
CJ series has animal weighing mode which can accurately weigh the moving animal. The special bucket for animal weighing is available as option.

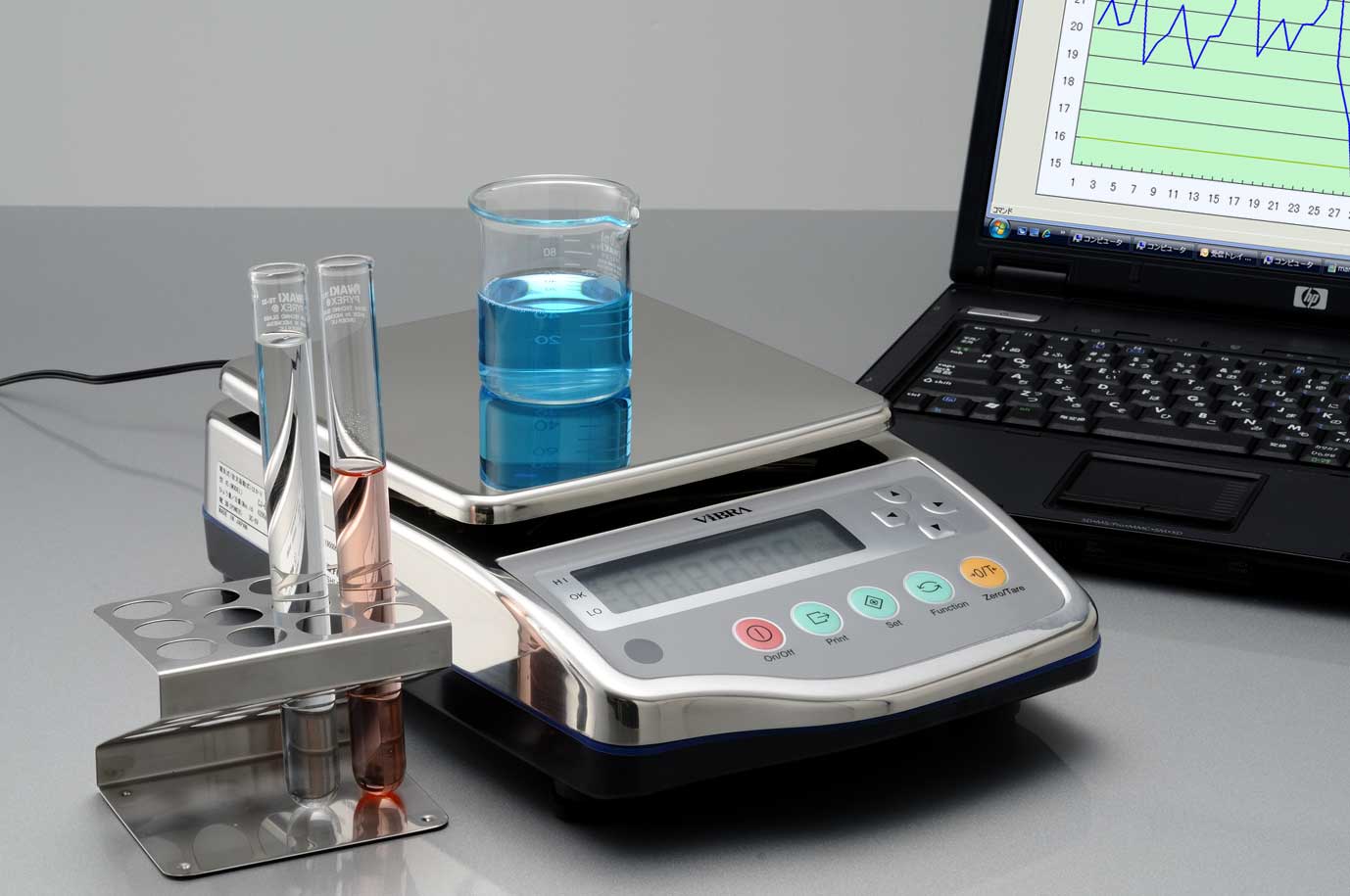

Connecting to outside devices
RS232C output is equipped as standard, easy connection to outside devices like PC. Plentiful outputs besides RS232C are available as option (special WP cable option is necessary when CJ should be used with RS232C output as water-proof).
Specification
| Model name |
CJ-820E CJ-820CE |
| Capacity | 820g |
| Readability (d) | 0.01g |
| Repeatability | 0.01g |
| Linearity | ±0.01g |
| Pan size | 140mm dia |
| Dimentions(WDH) | 206×312×89mm |
| Model name | CJ-3200E CJ-3200CE |
CJ-8200E CJ-8200CE |
CJ-15KE CJ-15KCE |
| Capacity | 3200g | 8200g | 15000g |
| Readability (d) | 0.1g | 0.1g | 1g |
| Repeatability | 0.1g | 0.1g | 1g |
| Linearity | ±0.1g | ±0.1g | ±1g |
| Pan size | 190×190mm | ||
| Dimentions(WDH) | 206×312×89mm | ||
Functions
- Back-light LCD display
- Counting
- Percent
- Carat
- Momme
- Coefficient
- Specific gravity
- Aniumal weighing
- Switching function of Min. readability
- Direction key
- Comparator (Limit)
- Accumulative adding
- Bar-Graph indication
- Manual operation calibration delete
- RS232C output
- ISO/GLP/GMP compliant print
- Warning by Buzzer
- RTS software download
- Under weight
- IP65 standard compliant dust-proof & water-proof structure
Option
| Model No. | Option Name |
|---|---|
| CJ-R4 | RS422A output |
| CJ-LM | Relay contact |
| CJ-LS | Full pack (BZ, RS, LM) |
| CJ-BT | Dry -cell battery pack |
| CJ-WR | Water-proof cable for RS232C output |
| AJUH(S) | Under-weighing hook |
| CJ-AP(S) | Bucket for animal weighing (620g, 820g) |
| CJ-AP(M) | Bucket for animal weighing (2200-6200g) |
| CJ-AP(L) | Bucket for animal weighing (8200g-15kg) |
| CJ-BZ | Loud buzzer option |
Peripheral equipment
| Model No. | Peripheral Name |
|---|---|
| CBM-910Ⅱ | Standard Printer |
| CSP-160Ⅱ | Statistics Printer |
