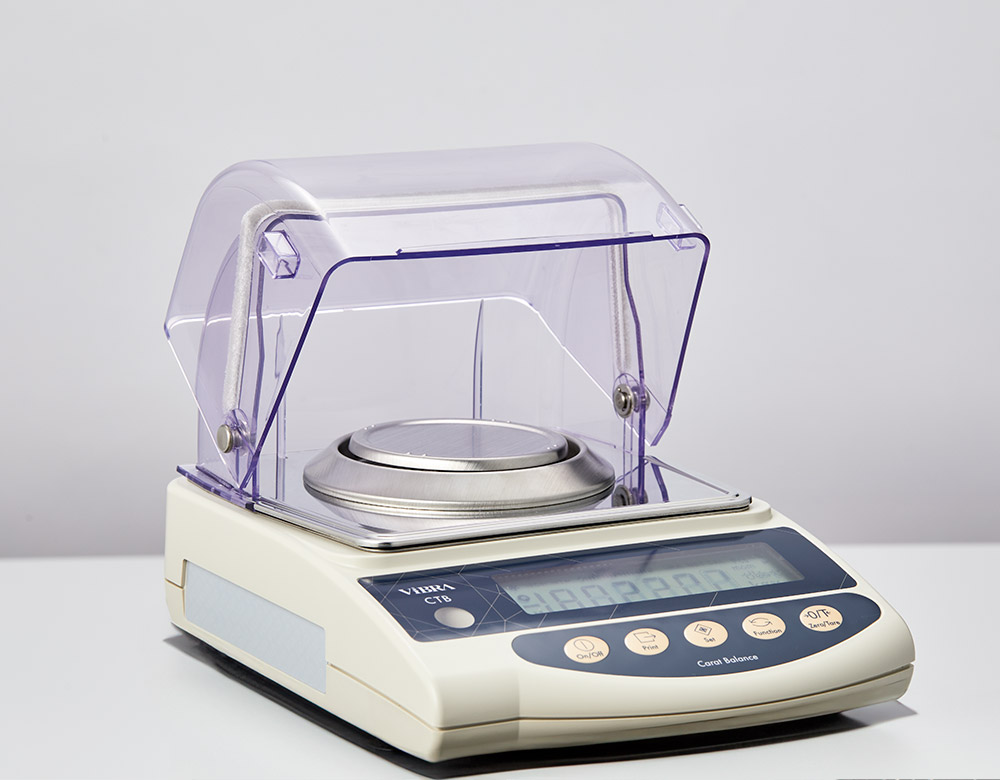

Carat Balance
Capacity:700ct〜700ct/Readability:0.001ct~0.001ct

Best Choice for Diamond Measurement
Precise, Reliable and Durable

Common Specification

Tare Zero to Full weighing range
Span adjustment Manual operation Span Adjustment with external
calibration weight
Over error "o-Err" showed when Full weight range + 9 more digits over
Temperature and humidity range 5 ~ 35℃,
Up to 80% Rh (without the dew condensation)
Power source AC adapter Input 100-240VAC / Output 12VDC
Output RS232C(Din 5P)

Download

Features

  • Secure Your Measurement
  • Durable and Long Life Use
  • Fit in Every Use Situation
  • Quick Access
  • Efficient Data Management

Durable and Long Life Use

Simple mechanism of sensor gives advantages for customers to use the balance for long time without maintenance.

Durable and Long Life Use

Fit in Every Use Situation

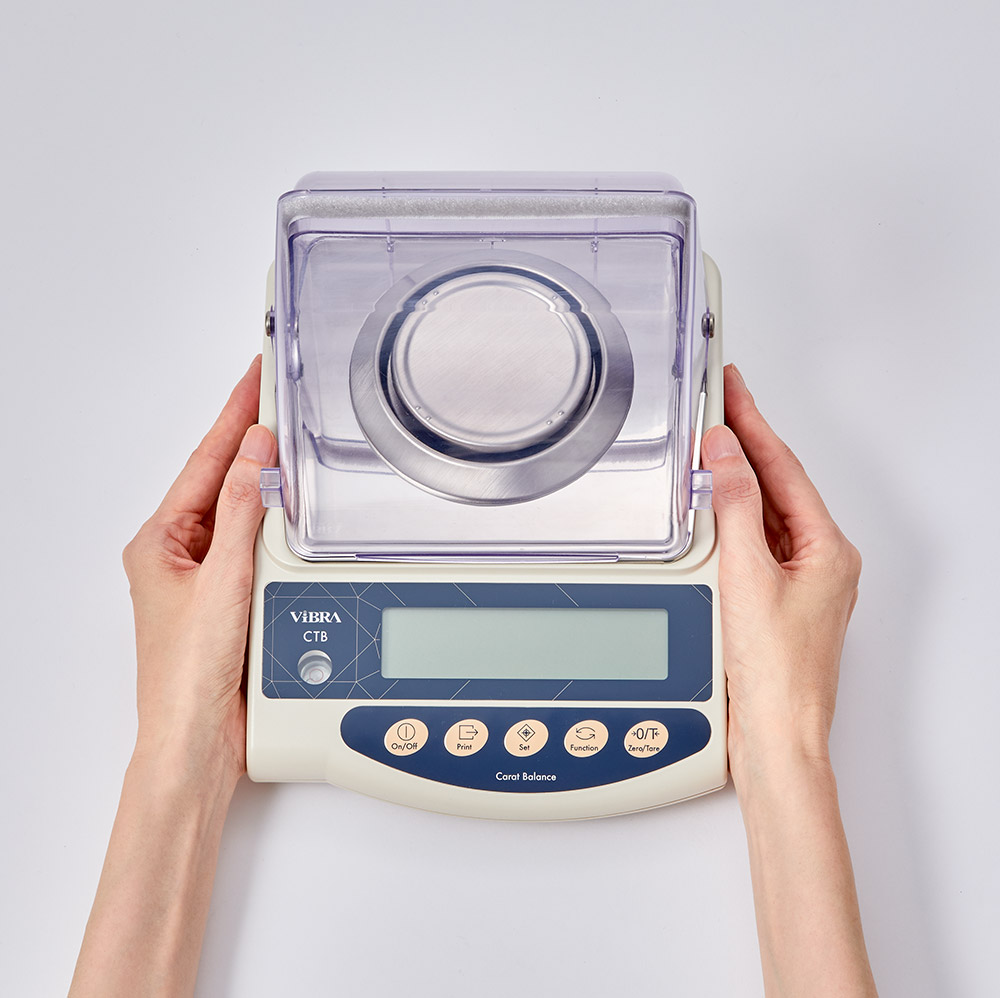

Small and compact design to keep sufficient working space even in limited place.

Fit in Every Use Situation

Quick Access

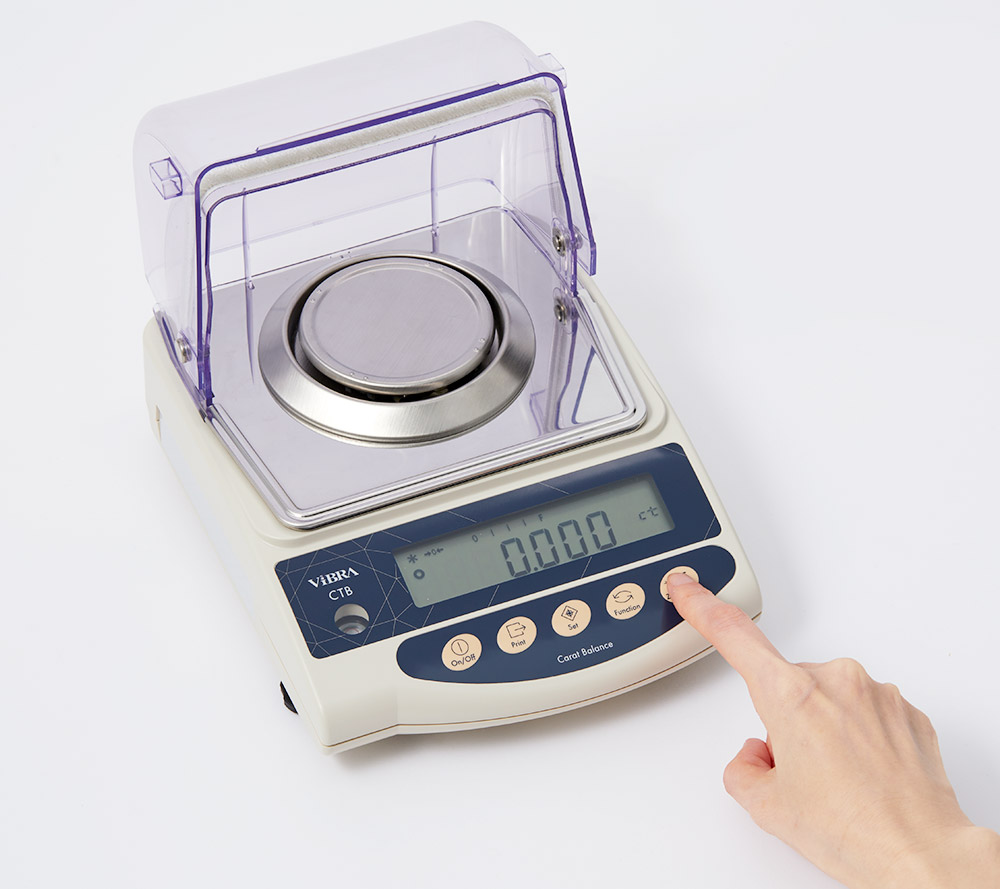

Tuning fork sensor realizes no warm-up time (plug in and go), short stabilization time. CTB has unique “Roll-top” windshield made of anti-electrostatic material, which allows users to easily access from front side.

Quick Access

Efficient Data Management

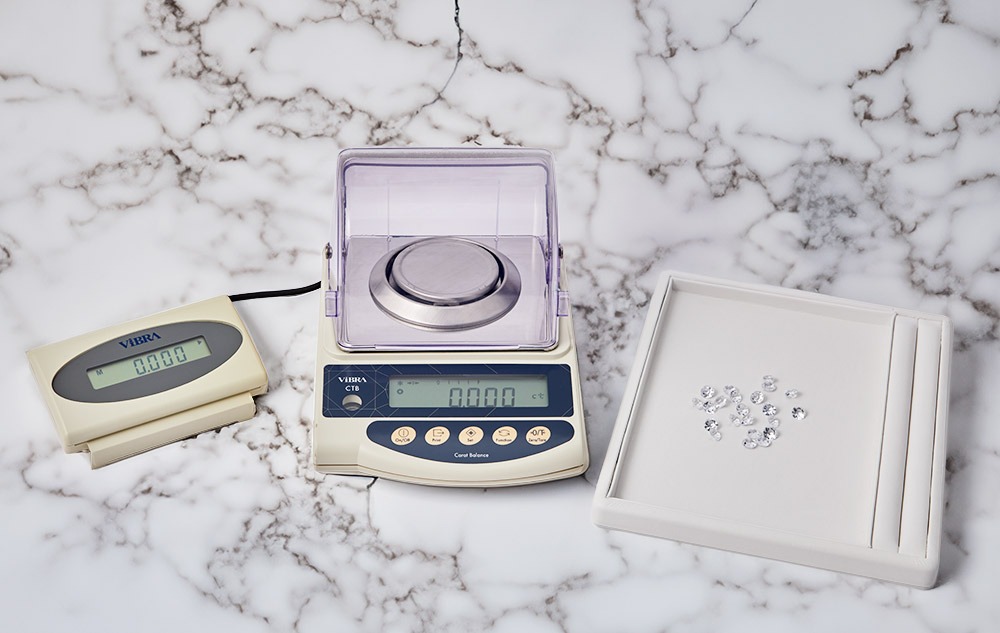

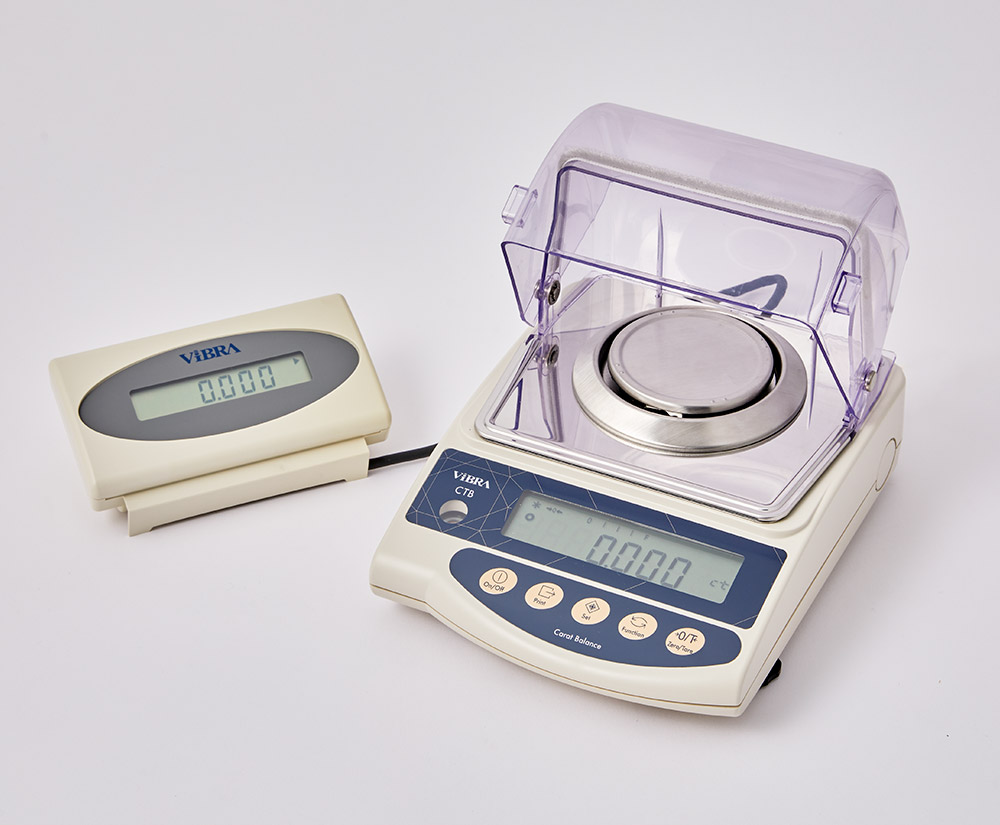

Weight data can be output via RS232C to satellite display and our RTS software. It enables customer to share and manage accurate data.

Efficient Data Management

Specification

Model name CTB 703
Capacity 700ct
Readability (d) 0.001ct
Repeatability(σ) 0.001ct
Linearity ±0.003ct
Stabilization time 4.0 sec.
Pan size 80mm dia
Type of windshield Roll-top windshield
Dimentions(WDH) 235×182×162mm(Including Windshield)

Option

Model No. Option Name
AJBT(S) Rechargeable battery

Peripheral equipment

Model No. Peripheral Name
LAS-05D-SD No wind Ionizing blower
CBM-910Ⅱ Standard Printer
RTS Data-collecting Software
SDI Satellite Second Display
