HT series
Analytical Balance
Capacity：80g〜220g／Readability：0.0001g
Make a Difference
Tuning-fork Sensor Inside, New Concept of Analytical Balance
Common Specification
| Tare | Zero to full weighing range |
|---|---|
| Span adjustment | Internal weight models･････Automatic and semi-automatic span adjustment with built-in weight external weight models･････Semi-automatic span adjustment with external weight |
| Over error | "o-Err" appears when load of full weight range + 90 digits over |
| Temperature and humidity range | 10～ 30℃、Up to 80％ rh(without the dew condensation) |
| Power source | Dedicated AC adapter Input 100-240VAC / Output 12VDC |
| Output | RS232C & peripheral device output |
Download
Features
- Tuning-fork Sensor Inside, New Concept of Analytical Balance
- Best Usability
- Resistant to disturbing vibration
- Strong security control
- Short stabilization time
- Easy to clean
Tuning-fork sensor inside, Only one analytical balance in the world
VIBRA HT series provides outstanding advantages to analytical weighing with tuning-fork sensor. The most remarkable features are sustainably high quality weighing performance and high durability in the long run. Since these are inherent in the principle and the design of tuning-fork sensor, the customers can enjoy the advantages even in highly precise laboratory weighing operation. VIBRA HT series makes a difference in analytical weighing.
Best usability, comfortable weighing operation

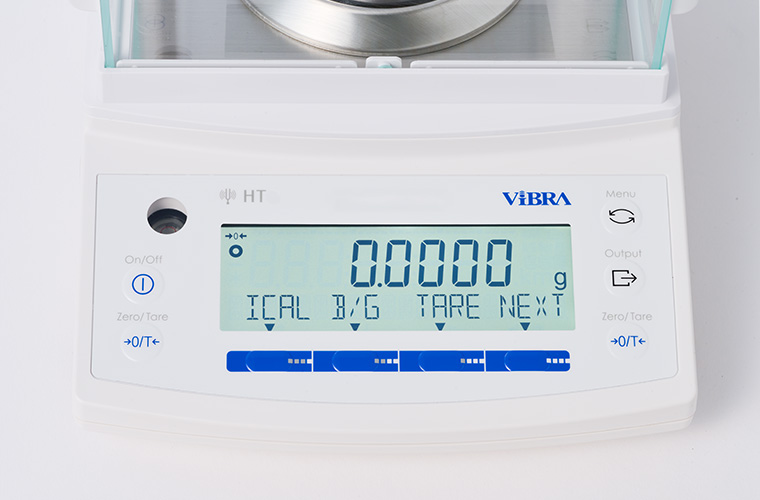

Two line display is adopted in new HT series. Assistant text in information display can help the user to operate the advanced functions. Customizable free keys enable comfortable and efficient operations furthermore.
Strongly Resistant to harsh environment
Analytical balance must be sometimes installed in the harsh environment where there are a lot of equipment generating disturbing vibrations. New HT which is equipped with newly developed filtering technology is highly resistant to disturbances in the environment.
Strong security control
The administrator requires the users to input password to log in the balance. It prevents the unauthorized operators to do unnecessary operations. And the weighing results are output with user-ID information. It conforms with the requirement of CFR21.
Short stabilization time for more efficient weighing operation
Thanks to newly developed filtering technology, the stabilization time has been reduced. It leads to more efficient weighing operation.
Simple structure, easy to clean
Structure of windshield and weighing chamber are very simple. It is easy for user to de-assemble and re-assemble, and easy to clean.
Optional density measurement kit
The specific gravity (density) of the objects can be easily measured in specific gravity mode. The density kit is available as option.
Specification
| Model name | HT84RCEN | HT124RCEN | HT224RCEN | HT84CEN | HT124CEN | HT224CEN |
| Capacity | 80g | 120g | 220g | 80g | 120g | 220g |
| Readability (d) | 0.1mg | 0.1mg | 0.1mg | 0.1mg | 0.1mg | 0.1mg |
| Verification intervals (e) | 1mg | 1mg | 1mg | 1mg | 1mg | 1mg |
| Built-in weight | ○ | ○ | ○ | N/A | N/A | N/A |
| Repeatability (σ) | 0.1mg | 0.1mg | 0.1mg | 0.1mg | 0.1mg | 0.1mg |
| Stabilization time | 3.0 sec. | 3.0 sec. | 3.0 sec. | 3.0 sec. | 3.0 sec. | 3.0 sec. |
| Pan size | 80mm dia. | |||||
| Dimensions | 213×290×314mm (including windshield) | |||||
Functions
- Back-light LCD display
- Counting
- Percent
- Carat
- Momme
- Coefficient
- Specific gravity
- Stand-by
- Switching function of Min. readability
- Comparator (Limit)
- Accumulative adding
- Bar-Graph indication
- Manual operation calibration delete
- Built-in automatic calibration weight
- RS232C output
- Print output
- ISO/GLP/GMP compliant print
- Clock/Calendar
- RTS software download
- Under weight
Option
| Model No. | Option Name |
|---|---|
| HTDK | Density measurement kit |
Peripheral equipment
| Model No. | Peripheral Name |
|---|---|
| CBM-910Ⅱ | Standard Printer |
| CSP-160Ⅱ | Statistics Printer |
| RTS | Data-collecting Software |
