CZ-B series

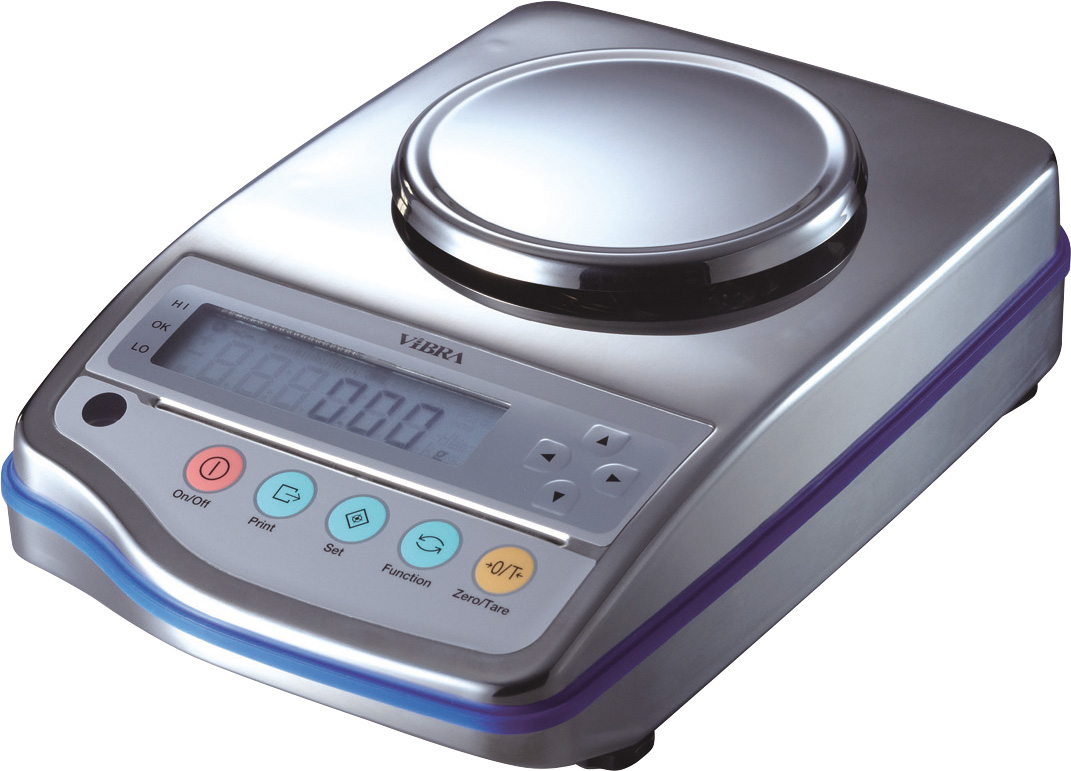

Anti-explosion electronic scale
Capacity：320g〜15000g／Readability：0.001g～1g

Compact top-loading Ex balance

Common Specification

Tare Zero to Full weighing range
Span adjustment Manual operation Span Adjustment with external calibration weight
Ingress Protection Rating IP65
Display 7 segments LCD (18mm height) with back light
Over error "o-Err" showed when Full weight range + 9 more digits over
Temperature and humidity range 0 ～ 40℃、Up to 80％ rh(without the dew condensation)
Power source Four D-size alkaline dry-cell batteries (LR20) or four D-size manganese dry-cell batteries (R20PU)
(with backlit OFF, with alkaline dry-cell batteries: 200-hour continuous operation)

Features

  • Tuning-fork sensor inside
  • IP65 water & dust proof
  • Stainless steel resistant to tough conditions
  • Japanese Ex standard certified by TIIS (no approval for IECEx)

Triple features in single body

CZ-B achieves triple features in single body, Ex-proof, high precision and IP feature. These features enable high accuracy weighing operation in harsh environment.

Portability, weighing everywhere

You can bring CZ-B everywhere you want because of battery drive feature. It is achieved by low energy-consumption design with innovative tuning-fork weighing sensor. Maximum runtime is 200 hours (when backlit off).

Clearly visible indication

Large LCD (18mm height) with back light makes the weighing operation easy, and eliminates misreading even in the dark location. It contributes to efficient weighing operation.

Specification



Standard type

Model CZ-B320 CZ-B620 CZ-B3200 CZ-B6200 CZ-B15K
Capacity 320g 620g 3200g 6200g 15000g
Readability 0.01g 0.01g 0.1g 0.1g 1g
Non-linearity ±0.01g ±0.01g ±0.1g ±0.1g ±1g
Repeatability (std.) 0.01g 0.01g 0.1g 0.1g 1g
Pan size 140mm dia 140mm dia 190x190mm 190x190mm 190x190mm
Calibration by external weight by external wight by external weight by external weight by external weight
weight units g, kg, ct, mom g, kg, ct, mom g, kg, ct, mom g, kg, ct, mom g, kg, ct, mom
Dimension (LWH) 212x322x92mm 212x322x92mm 212x322x92mm 212x322x92mm 212x322x92mm



High Precision type

Model CZ-B320S CZ-B620S CZ-B3200S1 CZ-B6200S1 CZ-B15KS2
Capacity 320g 620g 3200g 6200g 15000g
Readability 0.001g 0.001g 0.01g 0.01g 0.1g
Non-linearity ±0.003g ±0.003g ±0.03g ±0.03g ±0.2g
Repeatability (std.) 0.001g 0.001g 0.01g 0.01g 0.1g
Pan size 140mm dia 140mm dia 190x190mm 190x190mm 190x190mm
Calibration by external weight by external wight by external weight by external weight by external weight
weight units g, kg, ct, mom g, kg, ct, mom g, kg, ct, mom g, kg, ct, mom g, kg, ct, mom
Dimension (LWH) 212x322x183mm(including windshield) 212x322x92mm(including windshield) 212x322x92mm 212x322x92mm 212x322x92mm
