ALE-NC (US and Canada only)
Precision Balance
Capacity：320g〜8200g／Readability：0.01g～1g

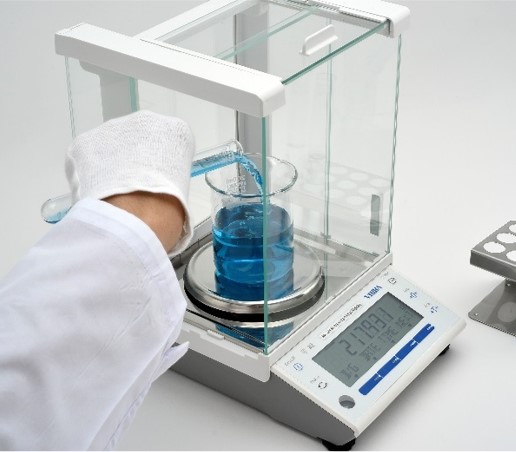

Optimize your laboratory weighing
NTEP and Measurment Canada approved (e=d : for direct sales)
Common Specification
| Tare | Not available by regulation |
|---|---|
| Span adjustment | Manual operation Span Adjustment with external calibration weight |
| Over error | "o-Err" showed when Full weight range + 9 more digits over |
| Temperature and humidity range | 10～ 30℃、Up to 85％ rh(without the dew condensation) |
| Power source | AC adapter: Input 100-240VAC,50-60Hz / Output 5.95VDC Dry-cell battery: AA batteries 4 pcs |
| Output | RS232C / USB Type B |
Download
Features
- Certification : NTEP (17-061A2) and Canada (AM-6153)
- Compact housing
- Short stabilization time
- User friendly operation
- ALE provides three advantages as key values. ALE series is new answer to optimized weighing operation in the laboratory.
Tuning-fork sensor inside, Only one in the world
As tuning-fork sensor balance, ALE series provides incomparable advantages to laboratory weighing. Sustainable high quality performance. High durability in the long run. Since these are inherent in the principle and the design of tuning-fork sensor, the customers can enjoy the advantages even in highly precise laboratory weighing operation.
Legal for trade use model
ALE-NC model has e=d specification approved by NTEP and Measurement Canada, which enables direct sales use both in the U.S. and Canada. This is the most renewed point from our original ALE model. (NTEP : 17-061A2, Canada : AM-6153)

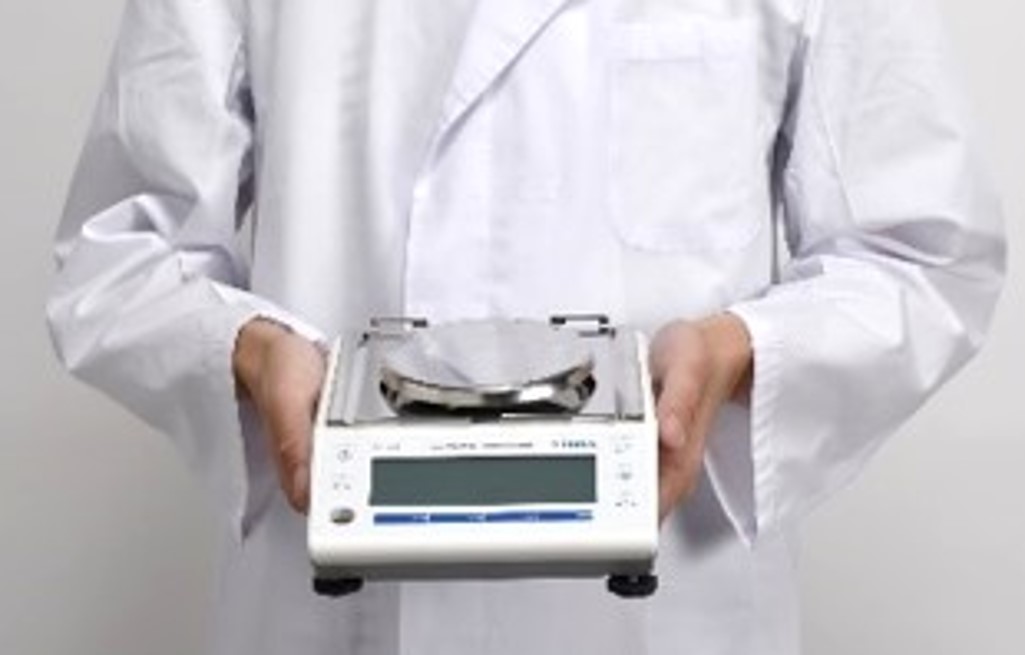

Compact housing
The smallest footprint among precision balances. You can install the balance wherever you want, even in very small laboratory.
Short stabilization time
ALE has newly developed filtering technology which can reduces the stabilization time to the half of the previous models. Short stabilization time is key factor to efficient weighing operation.

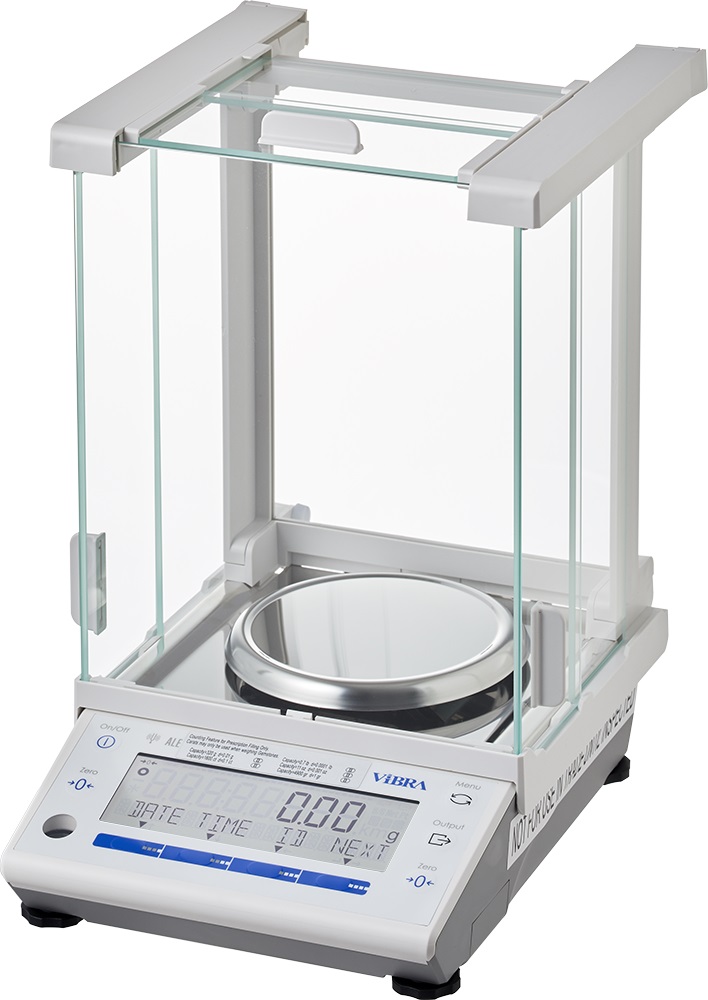

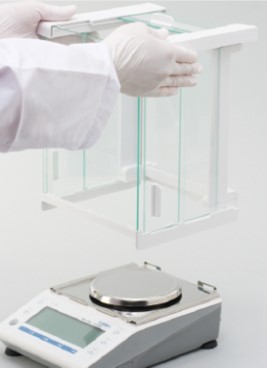

Windshield in innovative design
nnovative windshield strikes a good balance between space-saving design and easy access to weighing chamber. Windshield can be easily removed manually. Convenient for the users to clean the balance after daily operation.

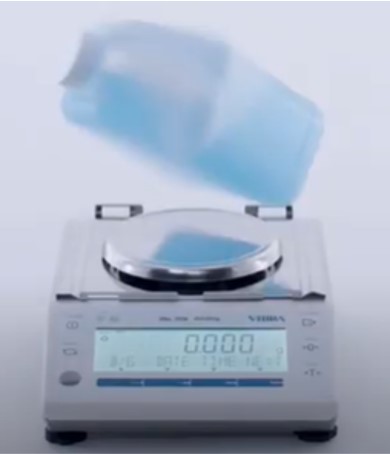

Extremely durable against strong impact
ALE series is designed to be very durable against strong impact. Even when heavy objects would accidentally fall down on the balance during operation, ALE can absorb the physical shock. You can resume the weighing operation immediately.

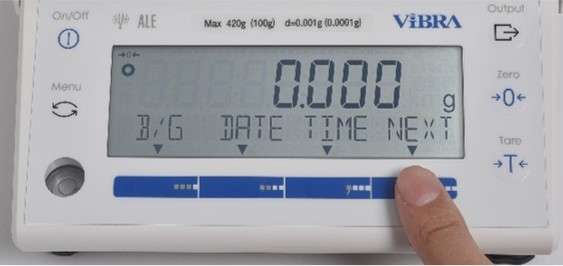

Minimize operation time with free keys
Three keys on the front can work as free keys. You can assign short-cut of often used functions on these keys. You don't need to push keys many times. It can minimize the operation time.
Multiple operation and connection
ALE can be operated with dry-cell batteries thanks to low power consumption in tuning-fork sensor. Battery is useful also as reserve electric power. ALE also has multiple connection with RS232C, USB Type B as default.
Specification

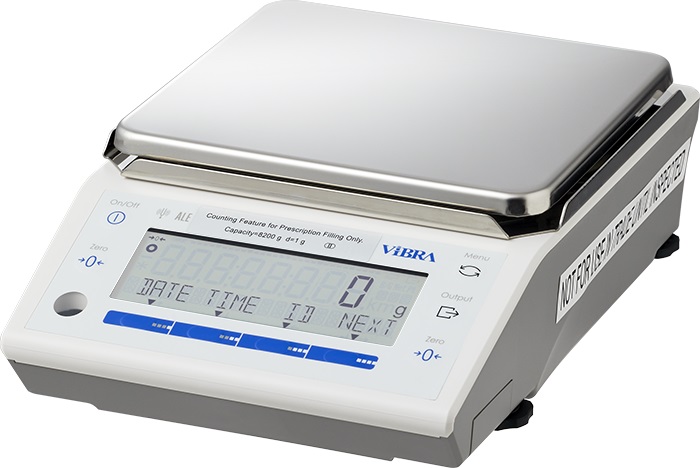

| Model name | ALE322NC | ALE1501NC | ALE8200NC | ||
| Capacity | 320g | 1500g | 8200g | ||
| Readability (d) | 0.01g | 0.1g | 1g | ||
| Verification intervals (e) | 0.01g | 0.1g | 1g | ||
| Accuracy class | Ⅱ | Ⅱ | Ⅱ | ||
| Repeatability | 0.01g | 0.1g | 1g | ||
| Stabilization time | 1.6sec. | 1.6sec. | 1.6sec. | ||
| Pan size | 118mm | 160x180mm | 160x180mm | ||
| Dimensions (WDH) |
205x270x301mm (incl. windshield) |
192x265x86mm | 192x265x86mm | ||
| Windshield | Included | Not included | Not included | ||
Functions
- Back-light LCD display
- Counting
- Percent
- Carat
- Specific gravity
- Stand-by
- Switching function of Min. readability
- Comparator (Limit)
- Accumulative adding
- Bar-Graph indication
- Manual operation calibration delete
- RS232C output
- ISO/GLP/GMP compliant print
- Clock/Calendar
- RTS software download
- Under weight
- Battery driveDry-cell battery drive
Option
| Model No. | Option Name |
|---|---|
| ALE-DU | Under weighing hook |
| ALE-DK | Density measurement kit |
Peripheral equipment
| Model No. | Peripheral Name |
|---|---|
| CBM-910Ⅱ | Standard Printer |
| CSP-160Ⅱ | Statistics Printer |
| RTS | Data-collecting Software |
