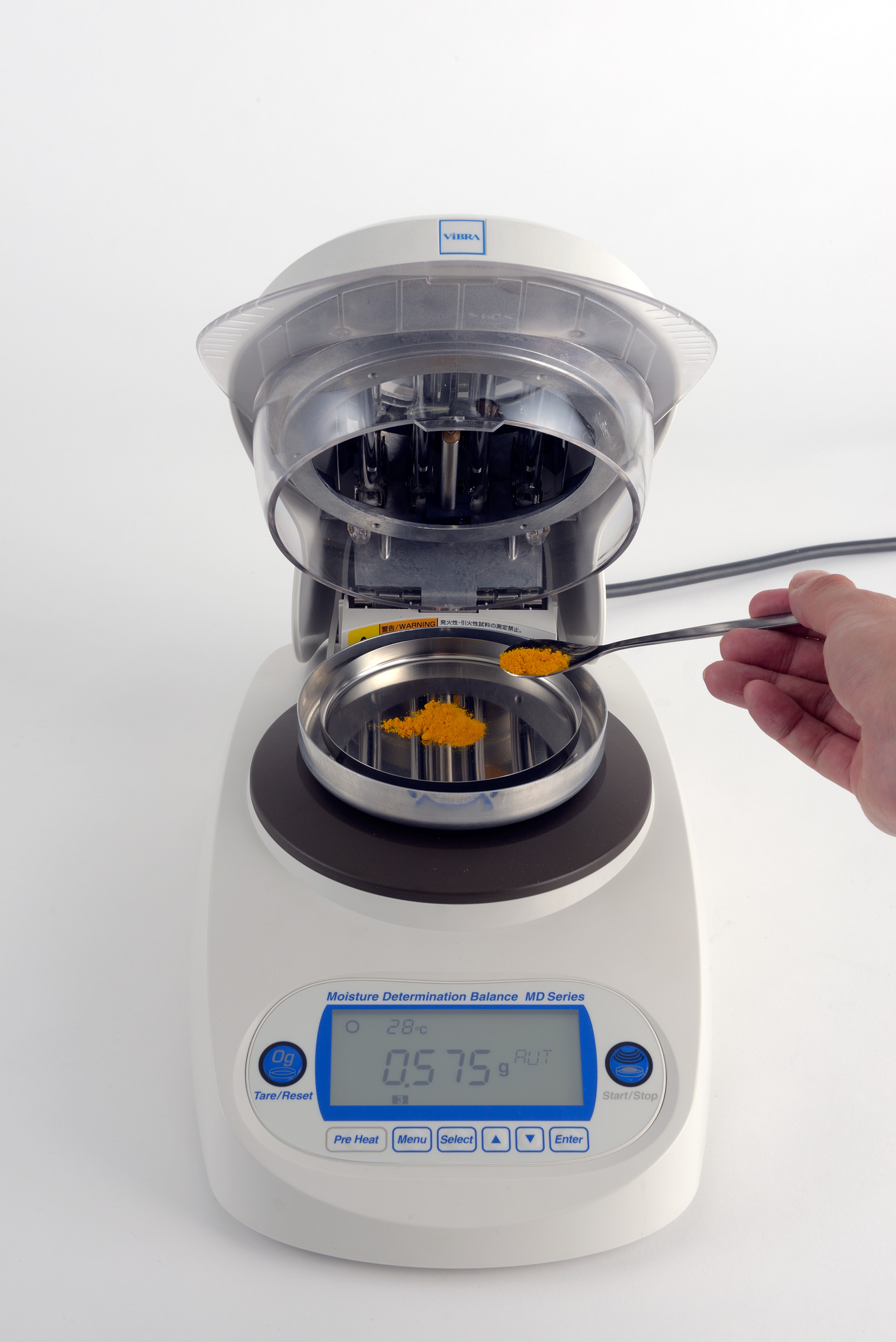

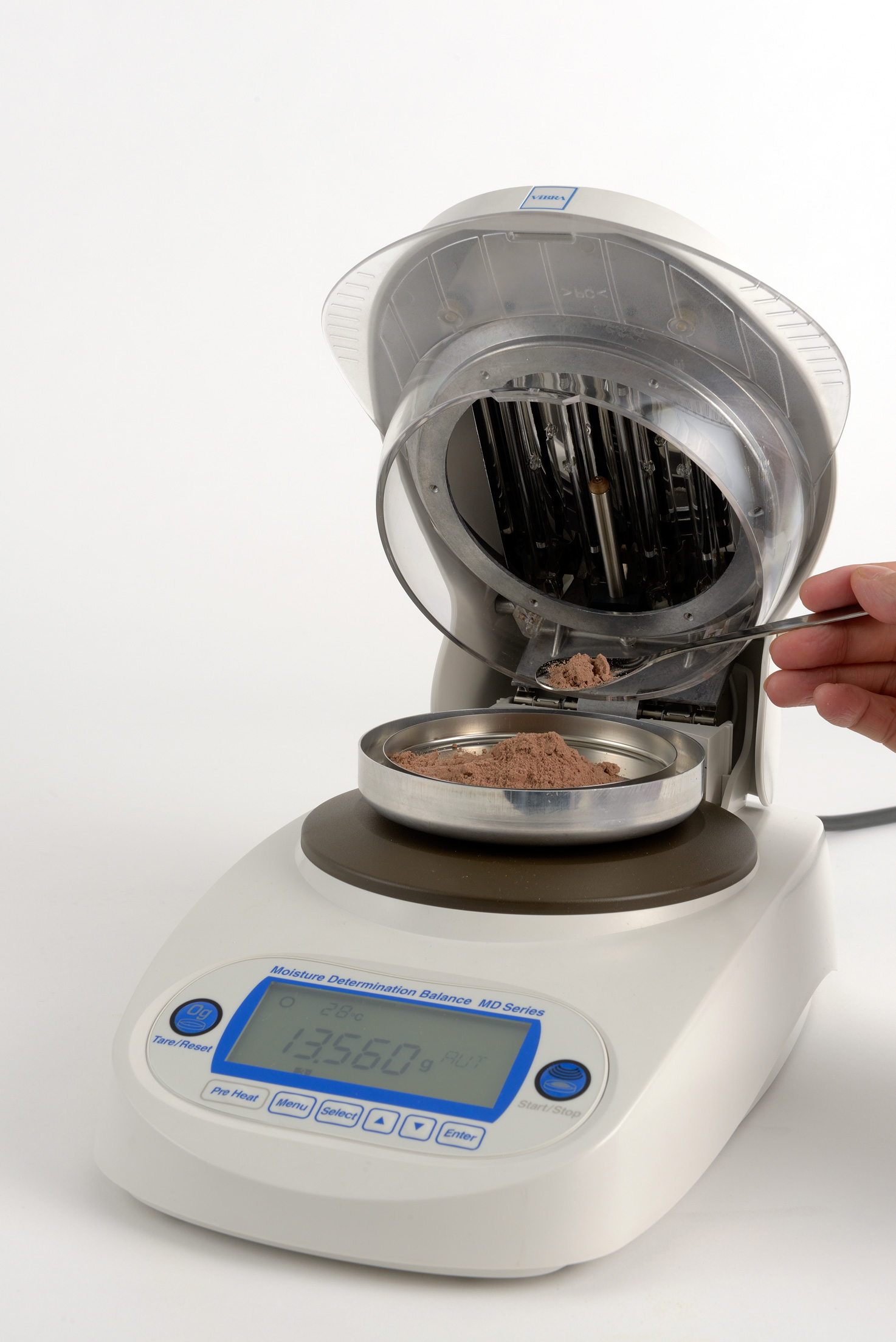

MD series

Moisture Analyser

Adaptability. Simplicity. Reliability. For routine moisture analysis in laboratory and manufacturing process.

Common Specification

Measurement format Evaporation weight loss method
Measurement mode Automatic operation mode, Timed operation mode
Display LCD with backlit (96× 40 mm)
Storage of measurement conditions 5
Heat source Organic cargon heater (280W× 2)
Power supply AC100~ 120V/220~ 240V
Power consumption Max. 900W
Sample pan Stainless steel (110mm dia., 11mm depth)
Output RS232C
Items included Sample pan× 2, sample pan handler, windshield, sample pan tray, spoon, spare fuse,
sample alminum sheet× 10, power cord, 3P-2P plug, operation manual

Download

Features

  • Simple structure - easy to clean
  • Newly adopted, organic-carbon heater
  • Fast drying, high repeatability
  • Connection to outside devices
  • Alert signal
  • Clear, bright and large LCD display

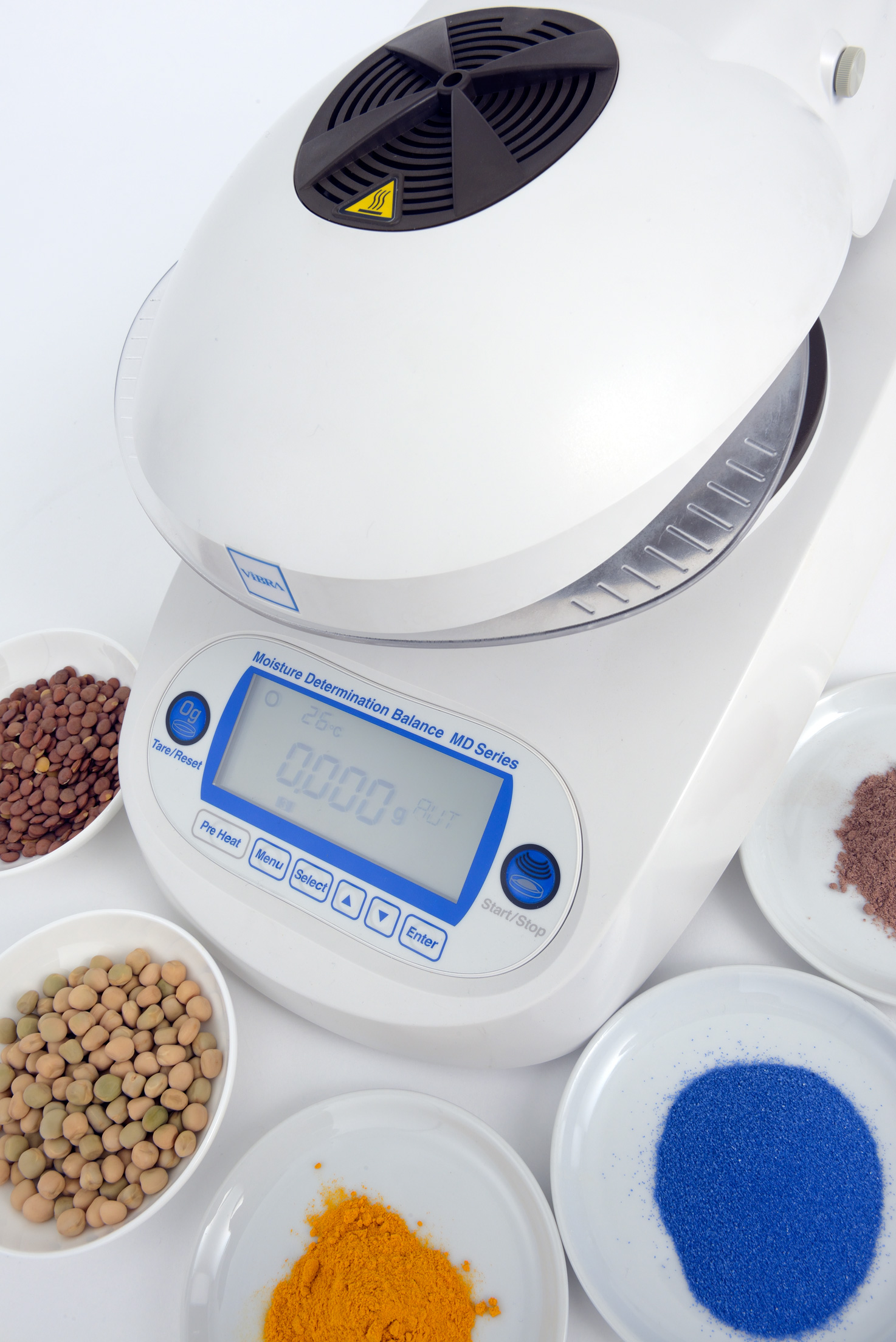

Adaptability

MD series can be available for moisture analysis of various objects and various locations. Unique organic carbon heature has strong power and is environmentally correct heat source.

Adaptability

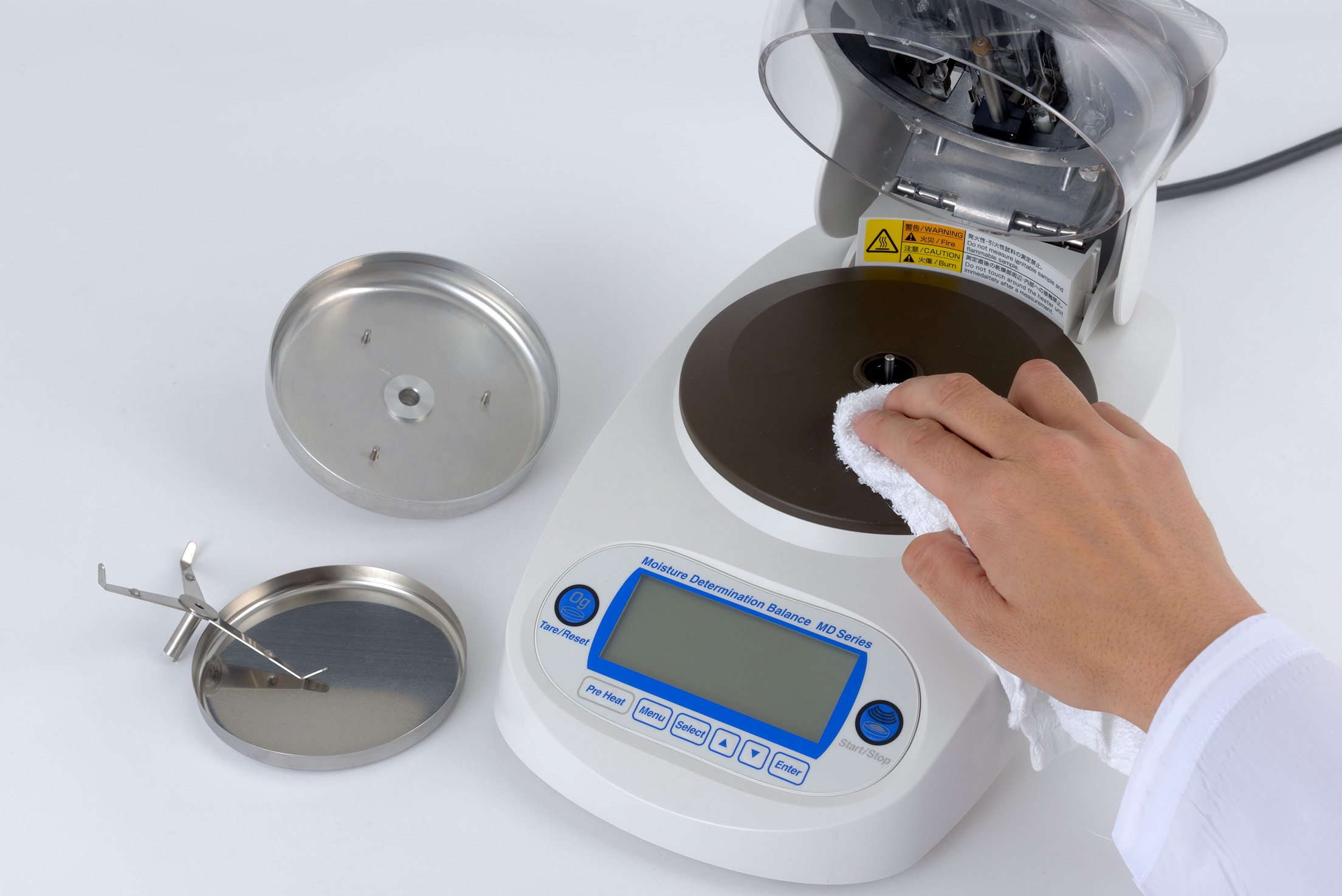

Simplicity

MD series has automatic measurement mode in which MD monitors the drying process and automatically completes the operation. And the structure is quite simple that daily cleaning and maintenance are easy.

Simplicity

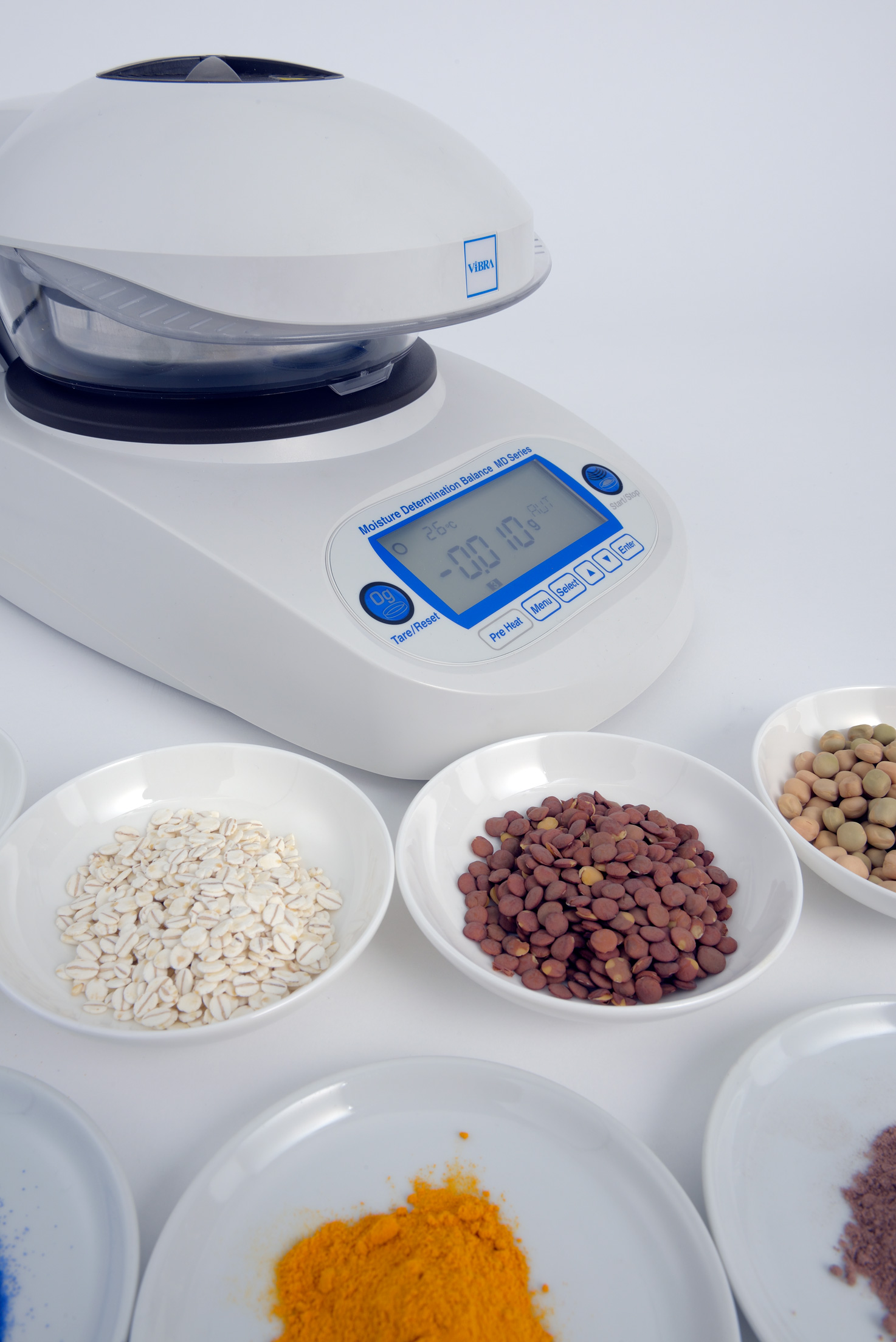

Reliability

No other factor is more important than reliability in measurement performance. Combination of auto-taring system and newly developed organic carbon heater realize excellent repeatability in measurement results.

Reliability

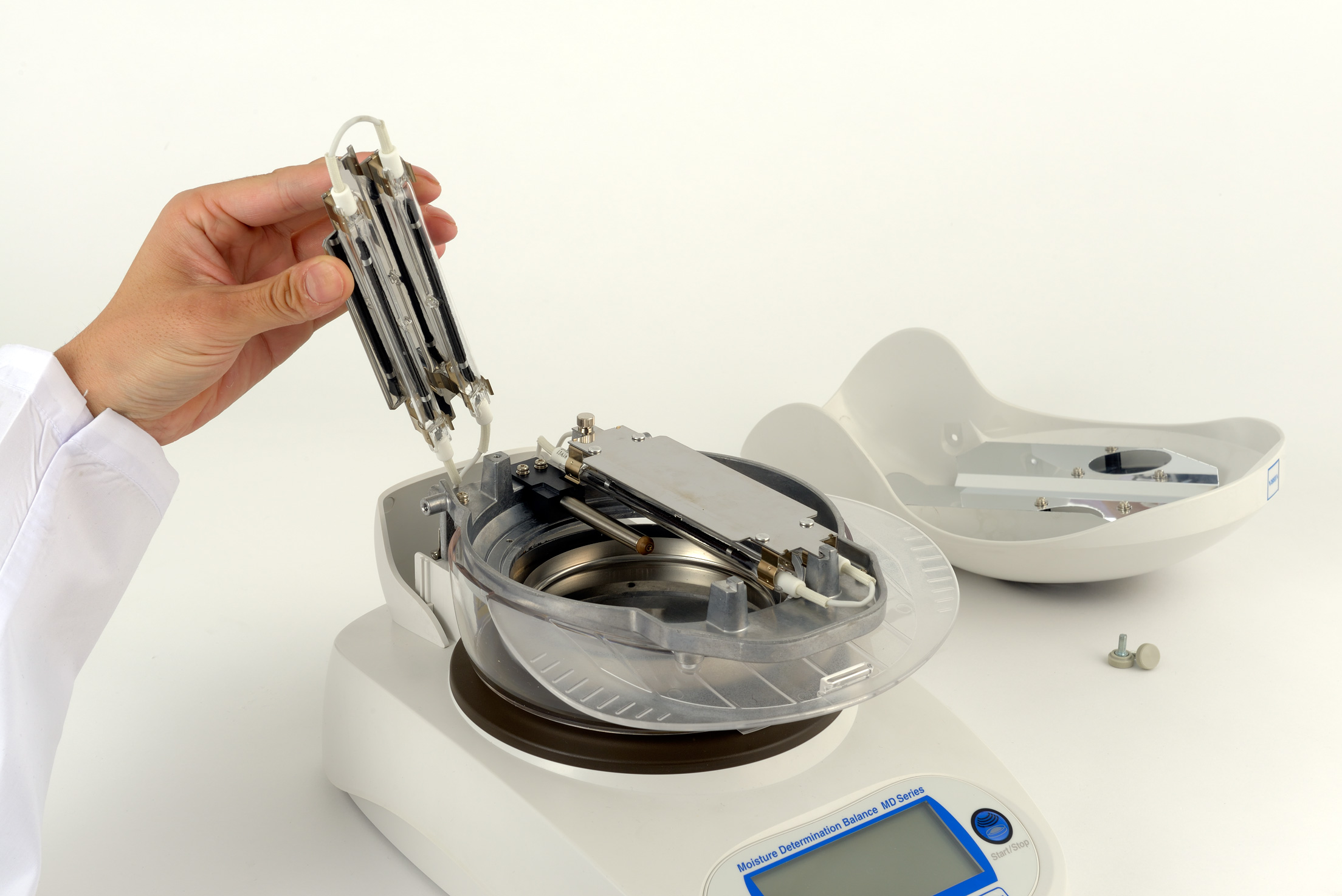

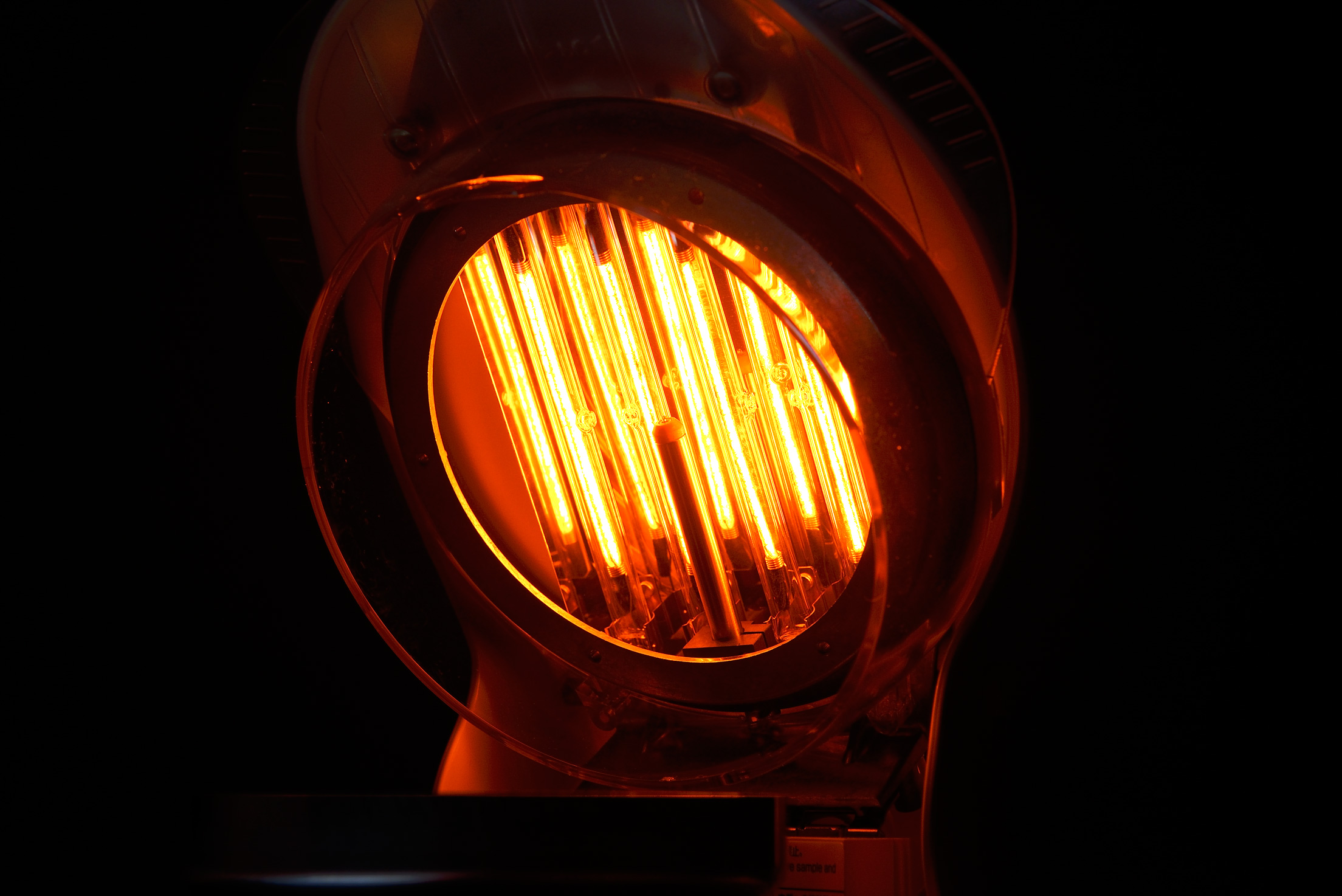

Newly adopted, organic carbon heater

Strong heat power and long life time are consistent in organic-carbon heater. Even when you need to replace heater as maintenance work you can do it manually without any tools.

Newly adopted, organic carbon heater

Specification

Model name MD83
maxmum sample weight 80g
minimum sample weight 1g
Readability of balance 0.005g
Readability moisture content 0.01% / 0.1%
Readability with 5g sample 0.1%
Measurement range 0 ~ 100%(wet base, solids), 0 ~ 500%(dry base)
Temperature range 30 ~ 180℃
Increment in temperature 1℃

Option

Model No. Option Name
DA-1 Disposable alminium sheet (500pcs)
FW-100 Deodorizing windshield

Peripheral equipment

Model No. Peripheral Name
VZ-380 Printer
TQ-100 Sample crusher
FDL-02 Data logger software
