FZ series

Anti-explosion electronic scale
Capacity:620g〜300kg/Readability:0.001g~1g

High precision weighing for every process in Ex environment

Common Specification

Tare Zero to Full weighing range
Span adjustment Manual operation Span Adjustment with external calibration weight
ATEX approval Ⅱ 1 G Ex ia Ⅱ B T4 Ga
Ingress Protection Rating IP65
OIML & EC approval classⅡ
Over error "o-Err" showed when Full weight range + 9 more digits over
Temperature and humidity range 5~ 40℃ (Scale & display), 0~40℃ (Power suppy box), Up to 85%
rh(without the dew condensation)

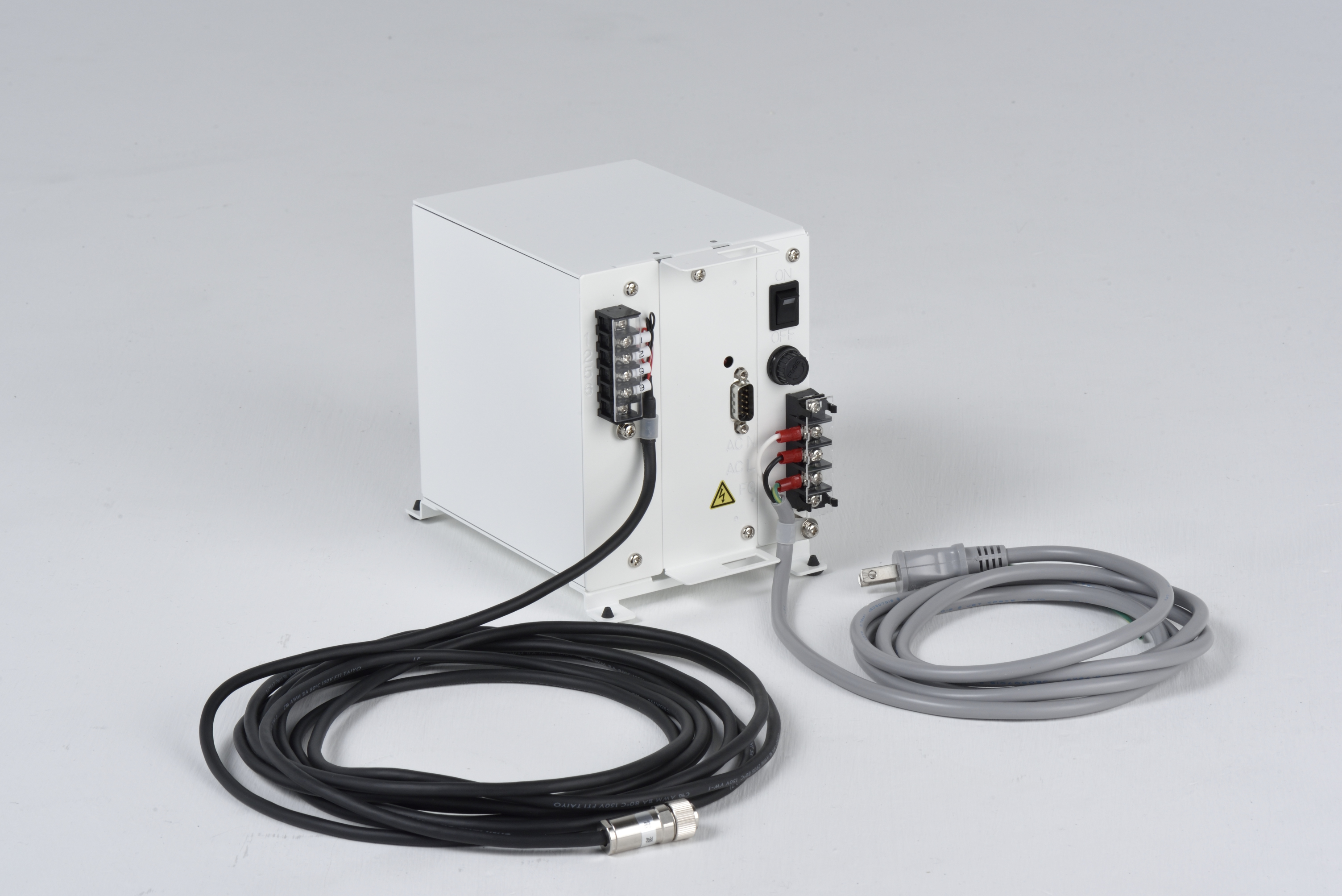

Power source Power supply box attached as standard
Output RS232C or option connector
Indicator i02 or i03 selectable *2
model name with i02: FZ 623Ex-i02
model name with i03: FZ 623Ex-i03
Scale cable length 5m for FZ 150K1GFEx and 300K1GFEx.
1m for all other models. *3
Power supply cable 5m. *4

Download

Features

  • Precision weighing in explosive gas area, category 1G (zone 0, 1 and 2)
  • Wide weighing range from 620g up to 300kg.
  • IP65 water and dust proof

ATEX & IECEx approval, Ⅱ 1 G Ex ia Ⅱ B T4 Ga

FZ series has ATEX and IECEx approval for weighing operation in explosive hazardous area.

ATEX & IECEx approval, Ⅱ 1 G Ex ia Ⅱ B T4 Ga

High Capacity and High Precision – Two in One

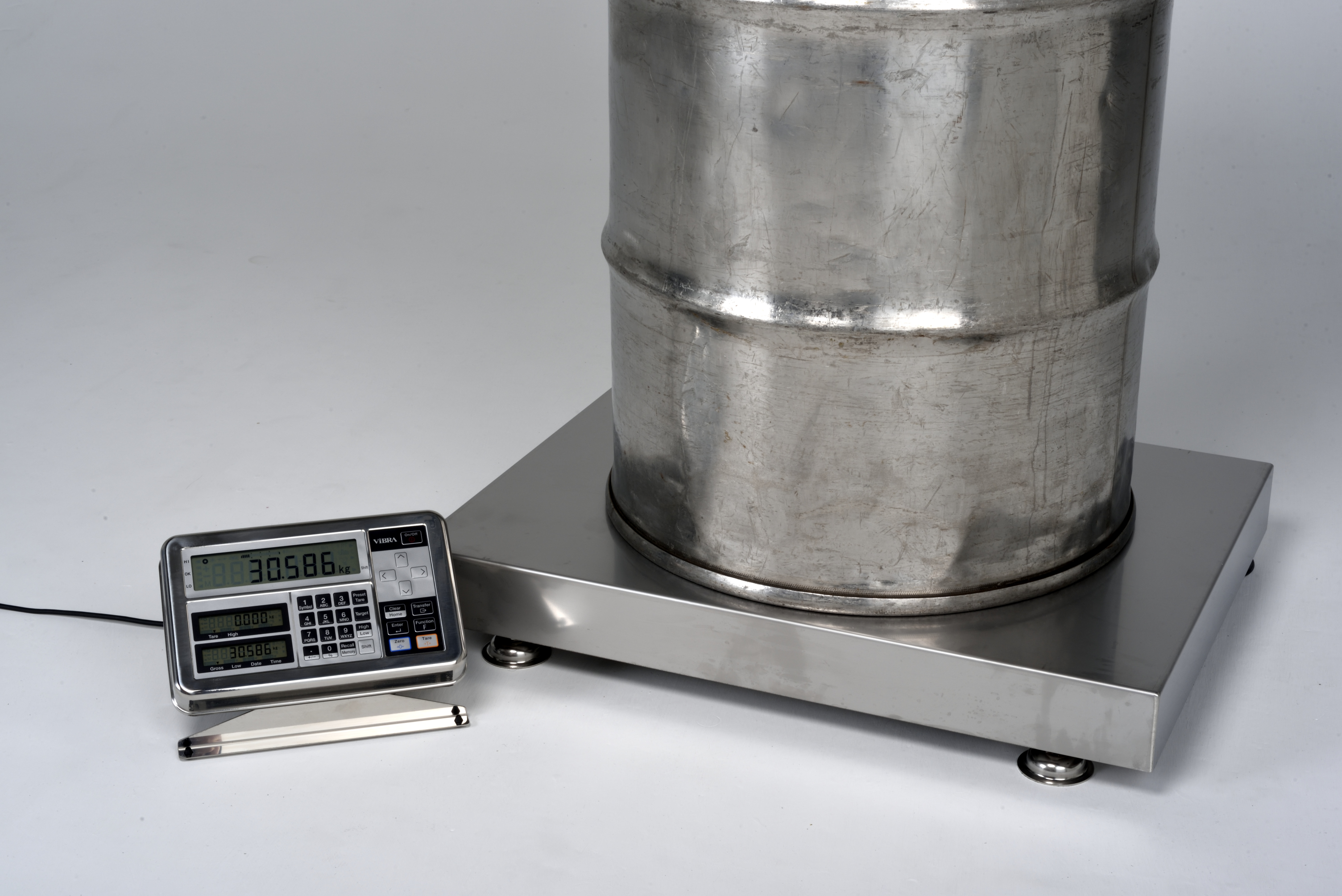

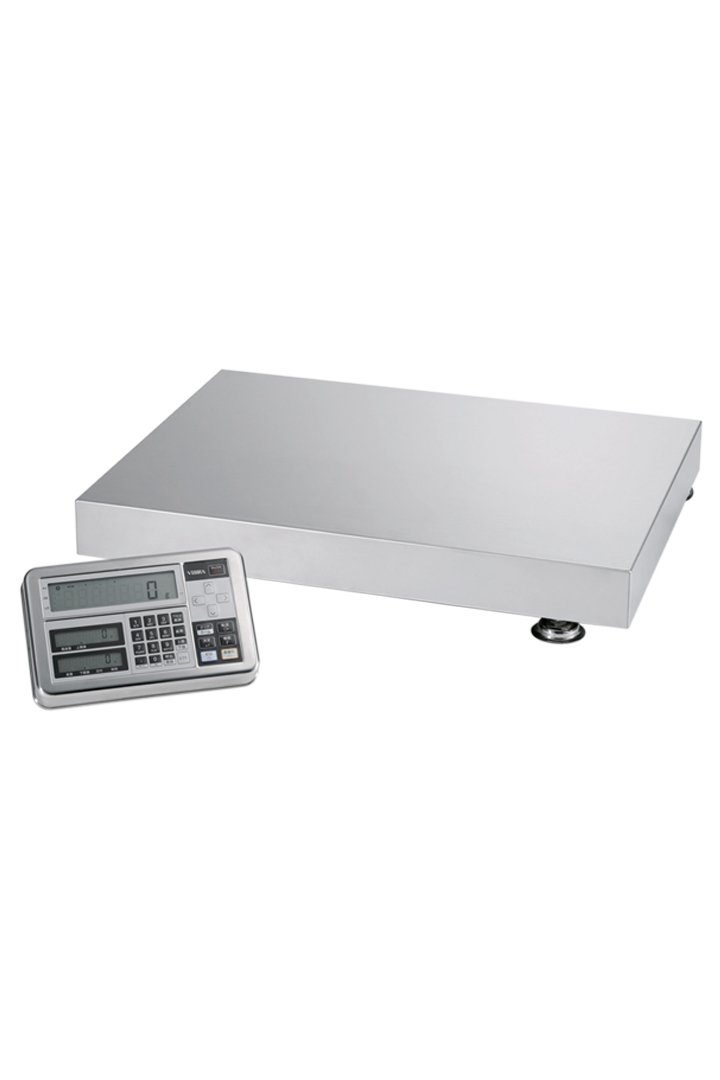

With FZ 300K1GF model, you can measure up to 300KG with 1g readability, which satisfies two demands in single unit, high capacity and high resolution. Unique technology "tuning-fork" sensor enables "two-in-one" feature. This unique technology also ensures excellent weighing performance and long-term stability even in tough Ex environment.

High Capacity and High Precision – Two in One

Reliable measurement for every process in Ex environment

FZ series helps your daily weighing operation in every process in Ex environment. With weighing range from 620g to 300kg and minimum read-out 1mg.

Reliable measurement for every process in Ex environment

Selectable indicator, i02

You can choose one of two indicators, i02 type and i03 type. i02 type is simple indicator with single display.

Selectable indicator, i02

Selectable indicator, i03

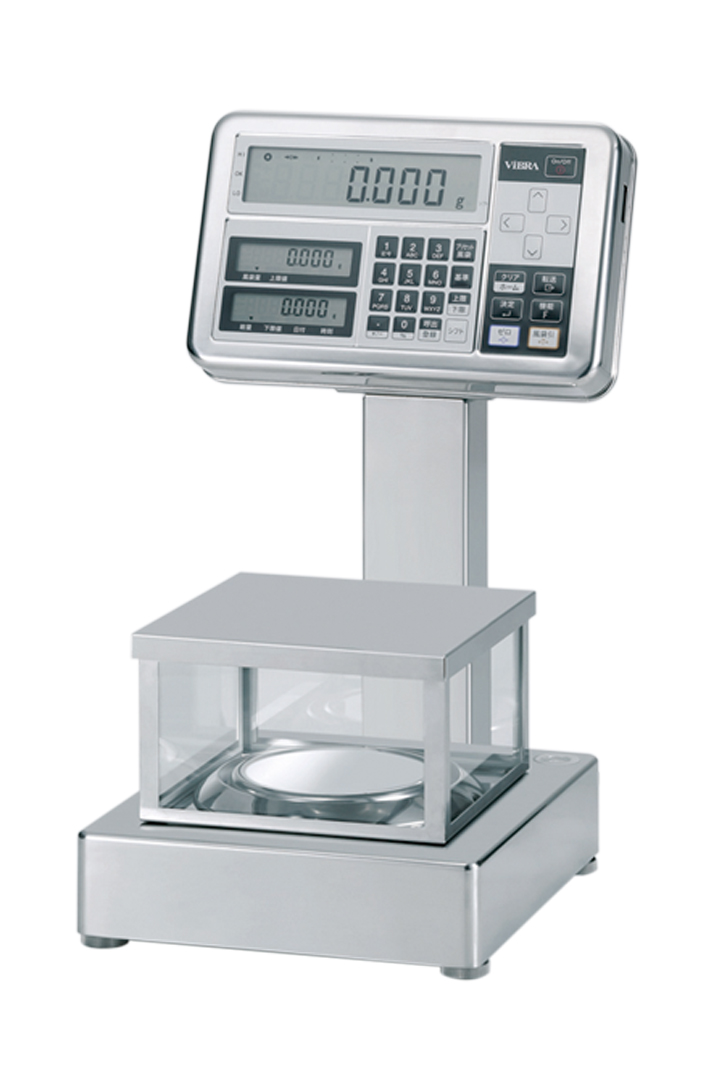

You can choose one of two indicators, i02 type and i03 type. i03 type has two sub-displays in which two additional information can be indicated (tare weight, gross weight, lower and upper limit, etc..).It make weighing operation easier and more comfortable.

Selectable indicator, i03

IP65 water & dust proof, easy to clean

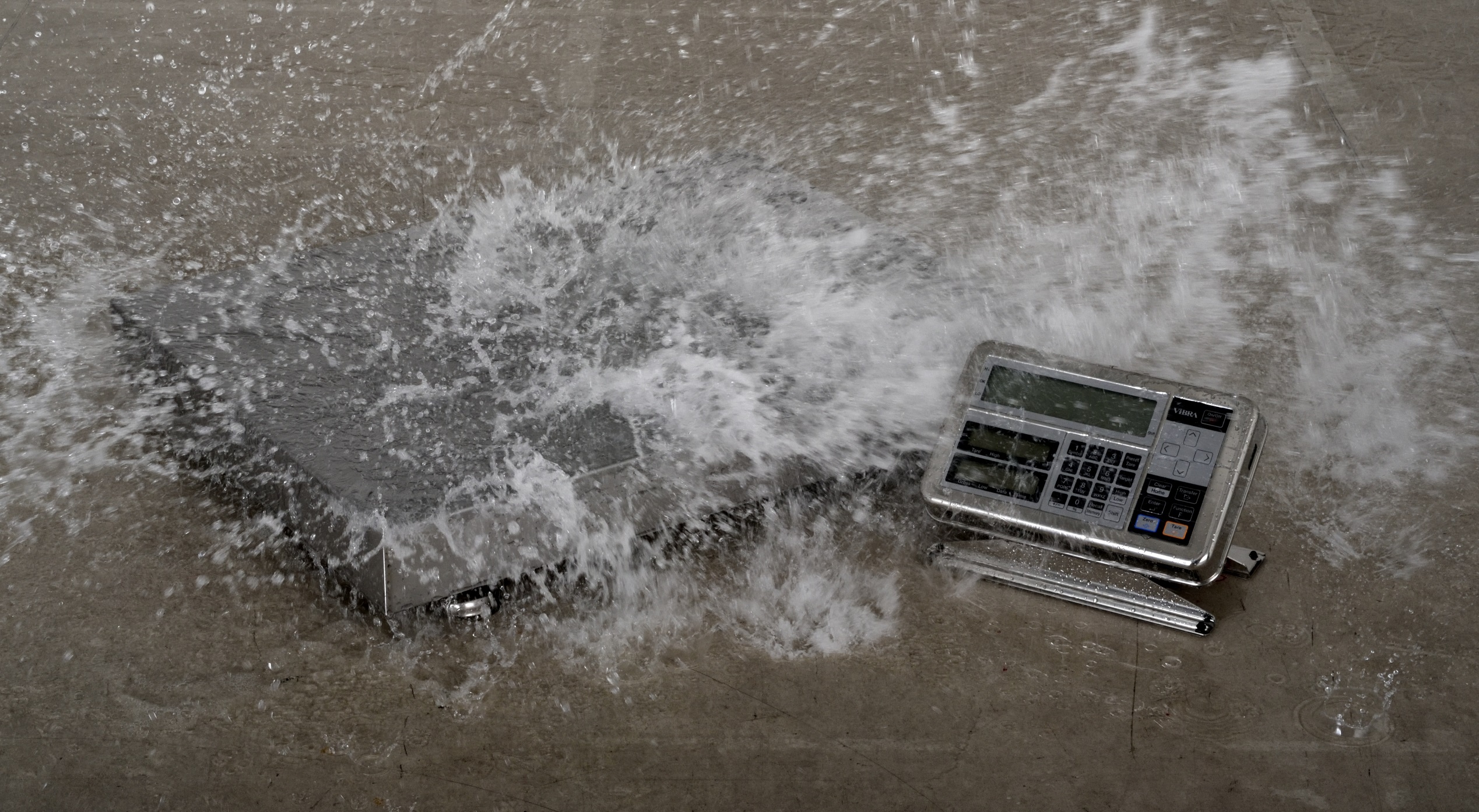

All models in FZ series have IP protection (rating 65) which allows FZ to be used in tough environment. After daily operation you can wash FZ with water and keep balance in clean condition.

IP65 water & dust proof, easy to clean

Optional output and extended cables

Various kinds of output and cable extension are provided as option. Please see "FZ output options configurations" and "FZ cable configurations" in Download section.

Optional output and extended cables

Specification

Model name FZ623Ex FZ3202Ex FZ6202Ex FZ15001Ex
Capacity 620g 3200g 6200g 15000g
Readability (d) 0.001g 0.01g 0.01g 0.1g
Verification intervals (e) 0.01g 0.1g 0.1g 1g
Repeatability 0.001g 0.01g 0.01g 0.1g
Linearity ±0.002g ±0.02g ±0.02g ±0.2g
Stabilization time 3.0 sec. 3.0 sec. 3.0 sec. 3.0 sec.
Pan size 140mm dia 190 x 190mm 190 x 190mm 190 x 190mm
Dimentions(WDH) 294 x 352 x 570mm



Model name FZ30K0.1GEx FZ60K0.1GEx FZ100K1GEx FZ200K1GEx
Capacity 30kg 60kg 100kg 200kg
Readability (d) 0.1g 0.1g 1g 1g
Verification intervals (e) 1g 1g 10g 10g
Repeatability 0.1g 0.1g 1g 1g
Linearity ±0.1g ±0.2g ±2g ±2g
Stabilization time 3.0 sec. 2.5 sec. 2.5 sec. 2.0 sec.
Pan size 310 x 330mm 380 x 530mm 380 x 530mm 380 x 530mm
Dimentions(WDH) 310 x 444 x 672mm 380 x 653 x 804mm



Model name FZ150K1GFEx FZ300K1GFEx
Capacity 150kg 300kg
Readability (d) 1g 1g
Verification intervals (e) 10g 10g
Repeatability 0.7g 0.8g
Linearity ±3g ±5g
Stabilization time 2.0 sec. 2.0 sec.
Pan size 800 x 600mm 800 x 600mm
Dimentions(WDH) 800 x 600 x x142mm

Option

Model No. Option Name
FS-SC Extended scale cable (10m, 20m)
FS-WS Windshield for FS 623 (S, M, L. Three sizes selectable)
FZ-RS additional RS232C output
FZ-R4 RS422A output
FZ-LM Relay contact
FZ-DS Display stand
FZ-PK Pole stand
FZ-PC Extended power supply cable (10m-70m, per10m)
FZ-OX(M) Communication option box (M)

Peripheral equipment

Model No. Peripheral Name
CBM-910Ⅱ Standard Printer
RTS Data-collecting Software
