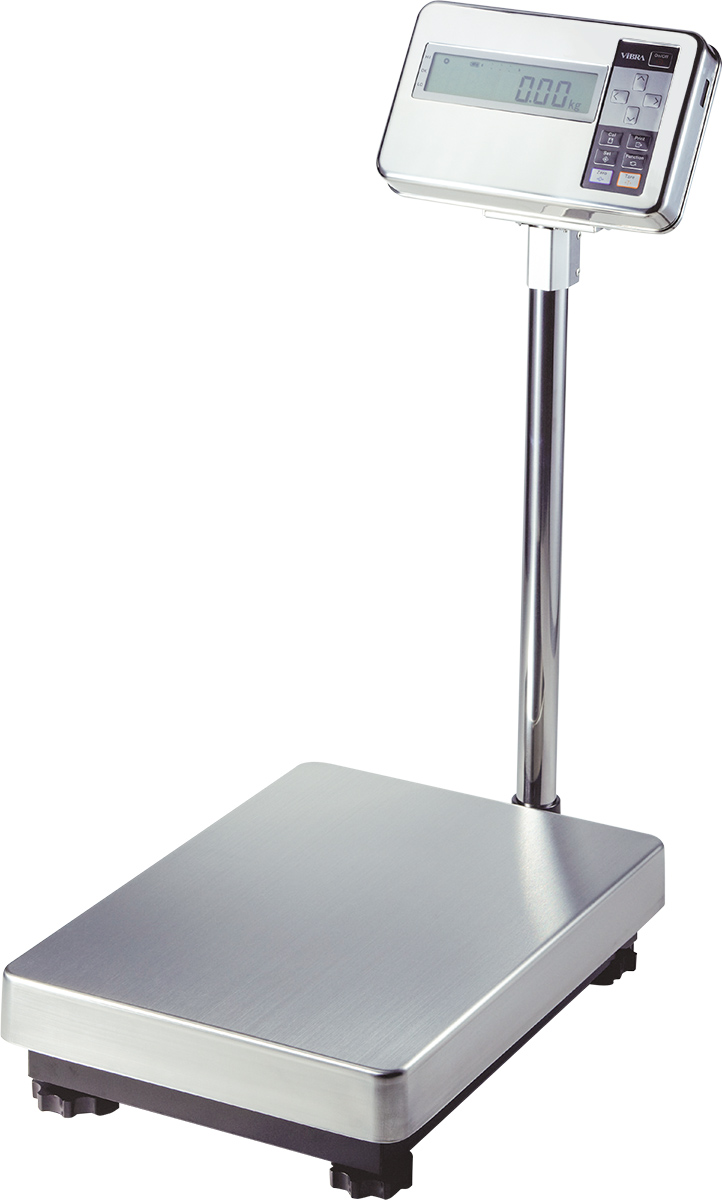

  • [イメージ]AZ-B60K

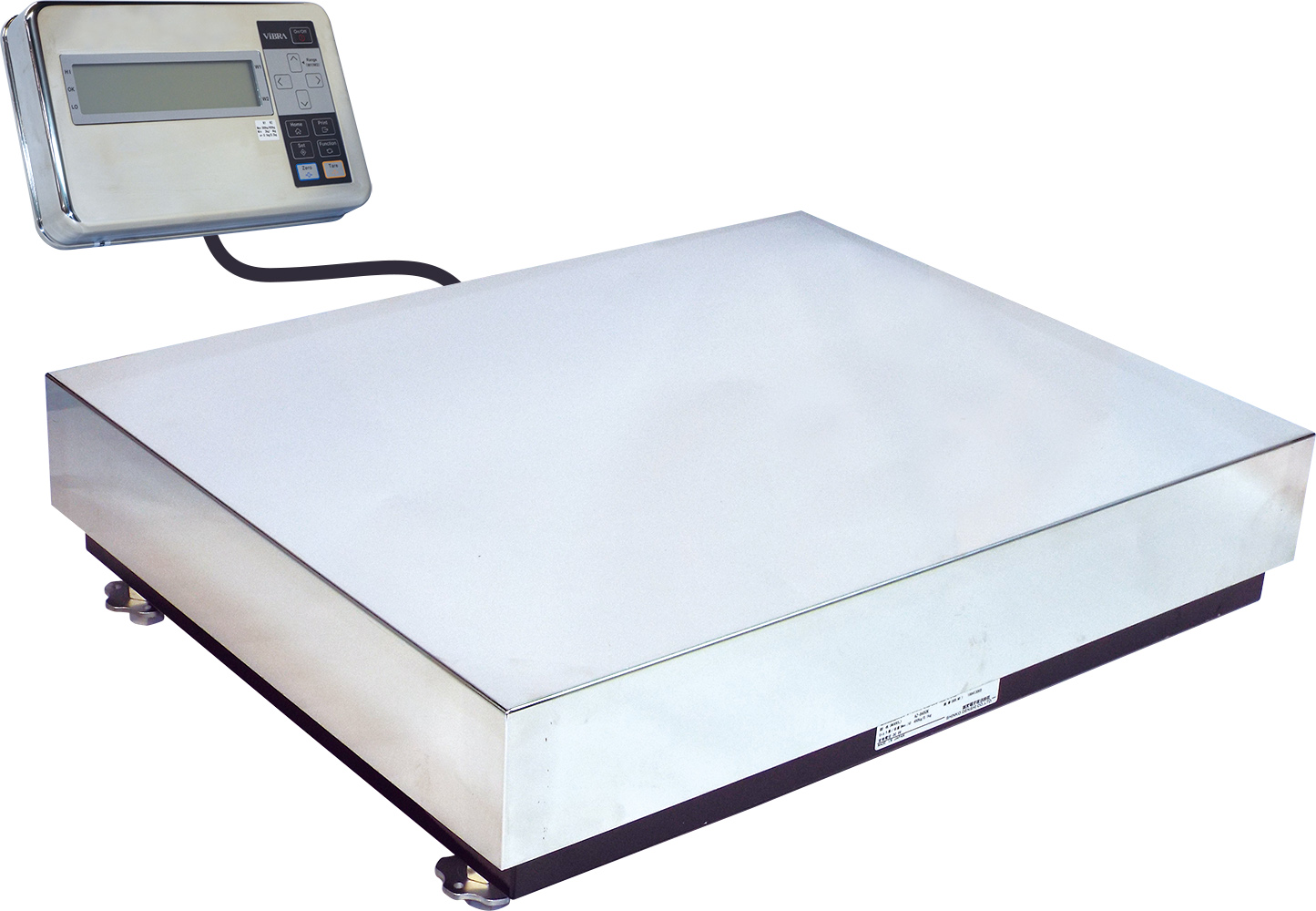

  • [イメージ]AZ-B450K
  • [イメージ]
[イメージ] [イメージ] [イメージ] [イメージ]

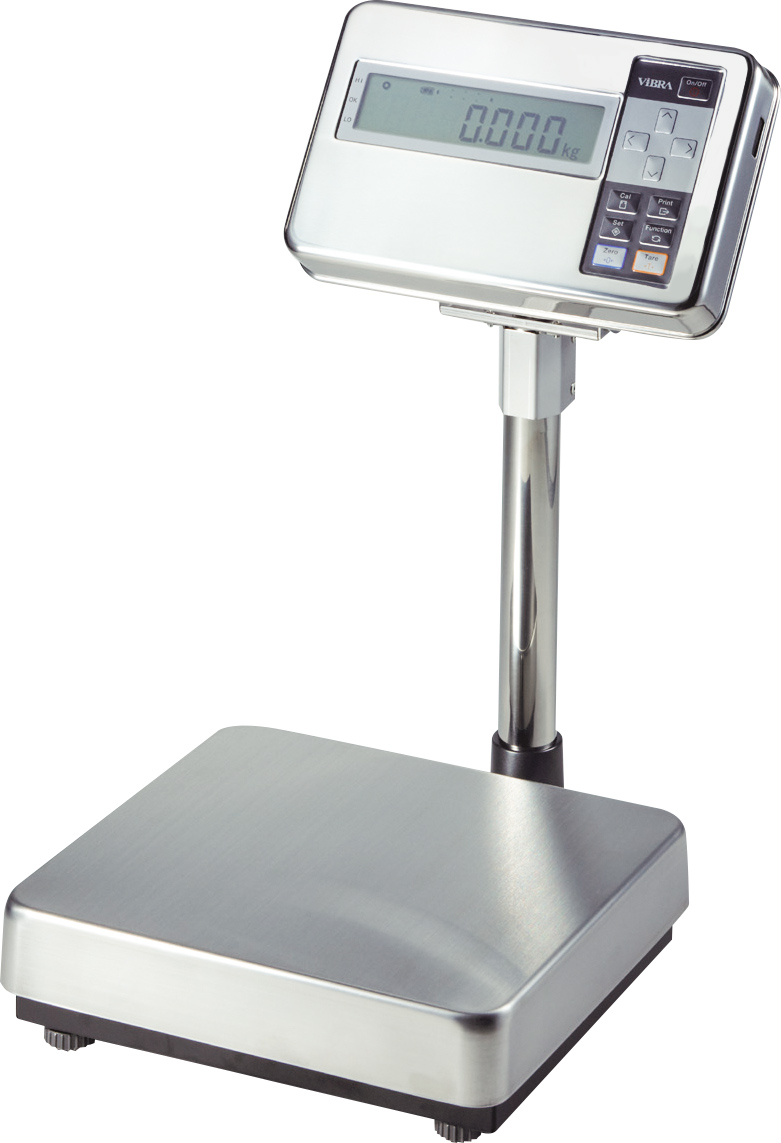

AZ-B series

Anti-explosion electronic scale
Capacity：6000g〜450kg／Readability：1g～0.1kg

Dry-cell battery powered, easy-to-install, with a maximum runtime of 1,000 hours

Common　Specification

Tare Zero to Full weighing range
Span adjustment Manual operation Span Adjustment with external calibration weight
Over error "o-Err" showed when Full weight range + 9 more digits over
Display LCD(25mm height) with back-light, seven segments, maximum seven digits
Temperature and humidity range 5～ 35℃, Up to 85％ RH(without the dew condensation)
Power source Four D-size alkaline dry-cell batteries (LR20) or four D-size manganese dry-cell batteries (R20PU)

Download

AZ-B catalogue
AZ-B Manual

Features

  • Battery drive for convenient use anywhere (four D size dry-cell batteries)
  • Low power consumption design
  • Easy-to-read large LCD display with bright backlit
  • Japanese Ex standard certified by TIIS (no approval for IECEx)

Dry-cell battery operation

Easy-to-install, no wiring works required
About 1,000 hours runtime (when using four D-size alkaline dry-cell batteries without backlit)

Easy operation by arrow keys

The arrow keys located to the right of the display allow the users to select their desired function directly from a variety of options.

Easy angle adjustment

You can easily adjust the panel angle to select the panel position most suitable for the application and location.

Specification

Model AZ-B600 AZ-B30K AZ-B60K AZ-B150K AZ-B450K
Capacity 6000g 30kg 60kg 150kg 450kg
Readability 1g 0.005kg 0.01kg 0.02kg 0.1kg
Pan size(mm) 200 x 250 330 x 310 380 x 530 380 x 530 550 x 700
Dimension (mm, LWH) 294 x 400 x 435 330  448 x 540 380 x 669 x 815 380 x 669 x 815 Separate type



Functions
